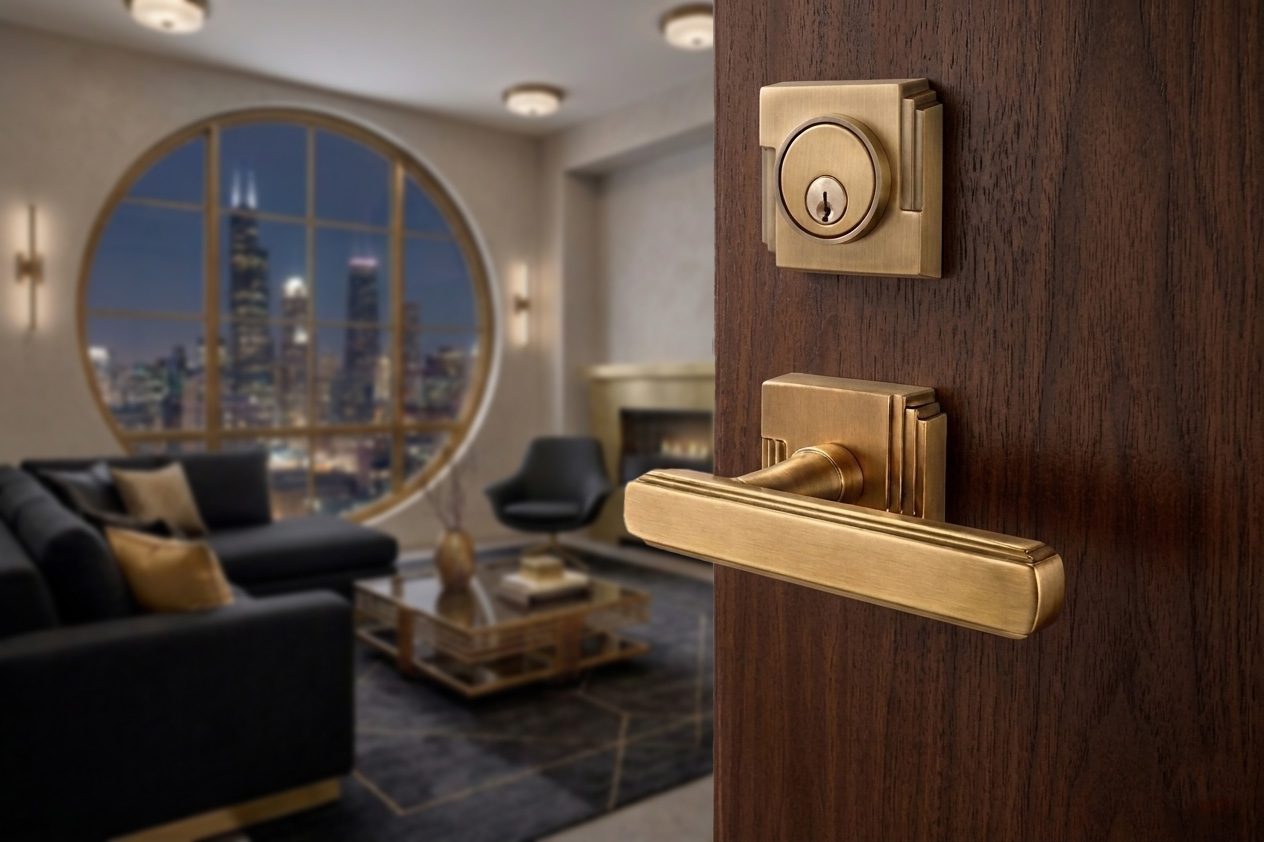

Art Deco Deadbolt
Art Deco inspired residential or light-duty commercial deadbolts
Features
- Beautiful, clean Art Deco inspired design and engineering that meets tough security needs
- Fully concealed fixing
- Optional double cylinder (keyed on both sides) and communicating (thumbturn on inside only) functions
- Professional keying services available
Downloads
Data Sheet (coming soon)
Installation Instructions (coming soon)
Templates (coming soon)

Specifications
Door Thickness: 1-3/4" (44mm) standard
Thin and Thick Door Kits available

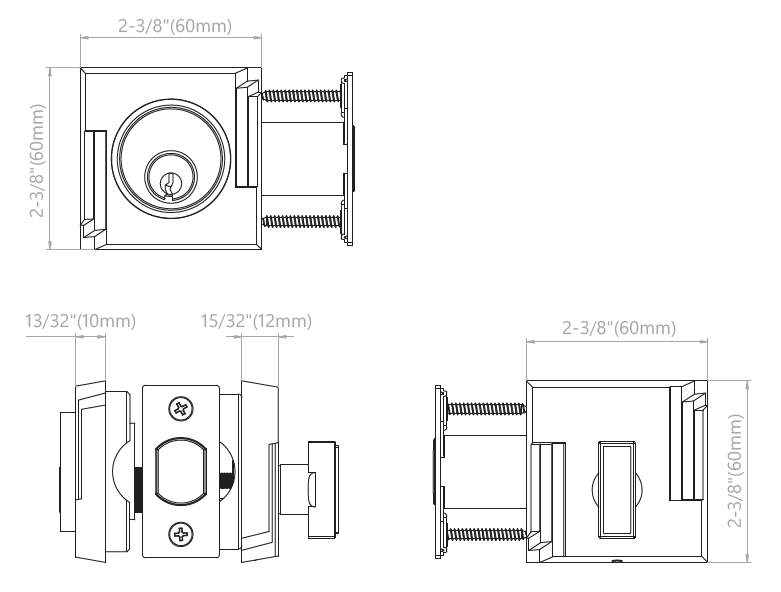

Backset: 2-3/8" (60mm) standard
2-3/4" (70mm) available
Material: Brass
Cylinder & Keys: Schlage C Keyway
Cylinder 5 pin with 2 keys
Keying services available
Deadbolt: 1" throw with hardened roller pin
Fully concealed fixing: M5 thru-bolts
UL fire-rated deadbolt available
ECIXAD



Functions

AD510/AD510

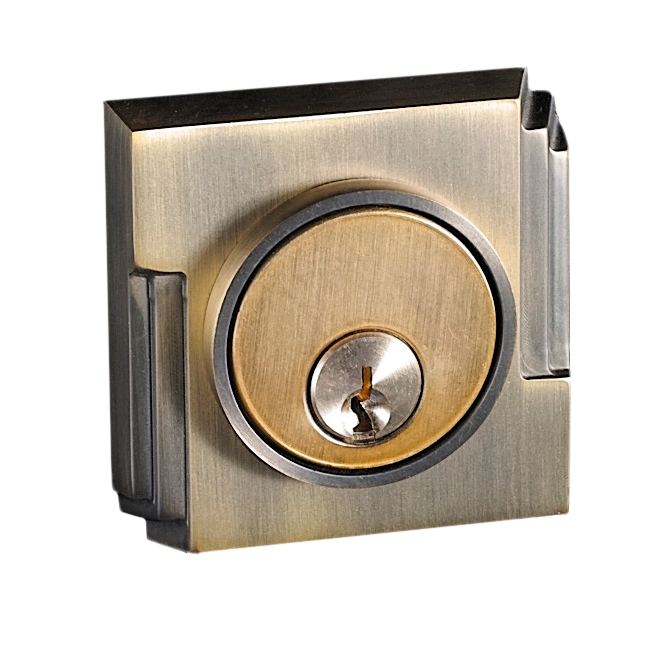

Single Cylinder

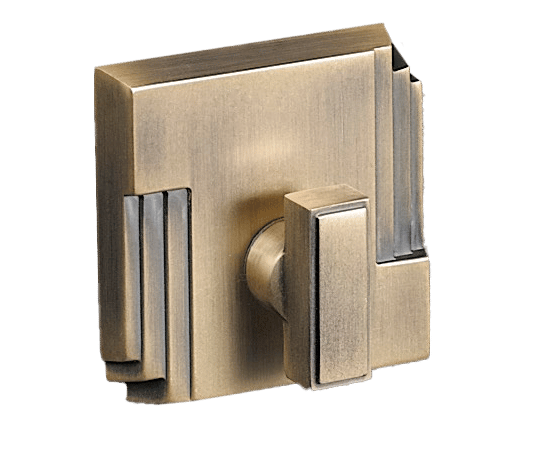

Key outside or thumb-turn inside retracts deadbolt

AD520/AD520
Double Cylinder
Deadbolt operated by Key from either side
ART DECO lever
Features clean lines and subtle stepped geometry, reflecting the balance of form and proportion found in the Art Deco movement. Available in Aged Brass (38) and Graphite Black (19G).

Finishes
Standard Finishes
19G Graphite Black
