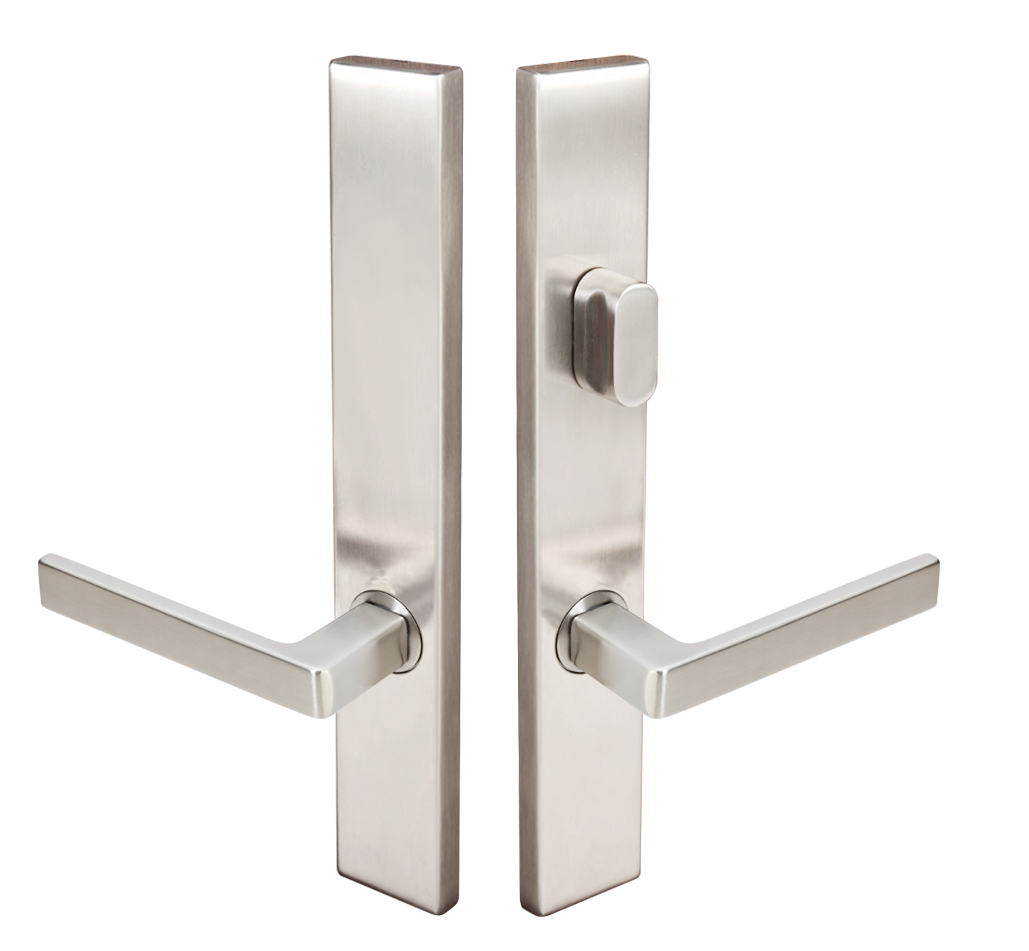

Universal Trim for Multipoint Locks
Suitable for all Multipoint Locks
with 3-5/8" (92mm) Lever-to-Lock Center Distance
Features
- INOX Universal Multipoint trim is designed with a patented adjustable thru-bolt system that allows retrofit with almost all multipoint locks and door prep configurations
- Choose from any INOX lever to match the other lever designs in your project
- Trims are available with either Lever High or Lever Low design
- Available with American knob or Euro-profile cylinders in Schlage C Keyway; cylinders ordered separately. Can be Keyed Alike or Master Keyed with other openings
- Bi-direction spring provides lever support for advanced longevity
Downloads
Data Sheet
How to Order
Installation Instructions
Templates (coming soon)
Three Part Specifications (coming soon)
![IN_Multipoint Trim_105-32_300dpi_hr IN_Multipoint Trim_105-32_300dpi_hr](https://www.inoxproducts.com/hubfs/Multipoint%20trim/IN_Multipoint%20Trim_105-32_300dpi_hr.jpg)
Specifications
Door Thickness: 1-3/4" with lockcase in center of door.
Thick Door Kits available
Cylinder to Lever Center Distance: 3-5/8" (92mm)
Spindle: 8mm x 8mm square
Faceplate and strike plate: Square corners. Radial corners available
Weather Seal Gasket: Included
Cylinder: Schlage C Keyway 5 pin cylinder or Euro cylinders available (will include 2 keys); order separately
Functions
![MA35 MA35](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MA35.png)
Entry w/Euro Cylinder
MA35
- For locks using Euro profile cylinder
- Both outside and inside levers are active
- Key from outside or thumbturn on inside lock the deadbolt using Euro cylinder with cam
![MA55 MA55](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MA55.png)
Entry w/Amer Cylinder
MA55
- For locks using American cylinder
- Both outside and inside levers are active
- Key from outside or thumbturn on inside locks the deadbolt using American cylinder with tailpiece
![MA25 MA25](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MA25.png)
Patio w/Euro Cylinder
MA25
- For locks using Euro profile cylinder
- Both outside and inside levers are active
- Inside thumbturn locks deadbolt using Euro cylinder with cam
![MA15 MA15](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MA15.png)
Patio
MA15
- For locks using tailpiece hub
- Both outside and inside levers are active
- Inside thumbturn locks deadbolt using tailpiece
![MADP MADP](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MADP.png)
Full Dummy
MADP
- Both outside and inactive levers are inactive
![MA20 MA20](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MA20.png)
Half Passage
Half Dummy
MA20
- Outside lever is inactive
- Inside lever is active
![MA10 MA10](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MA10.png)
Passage
MA10
- Both inside and outside levers are active
- No deadlock
Escutcheon Options
INOX Universal Multipoint trim matches these escutcheons with beauty and flair.
![MU_lever_low MU_lever_low](https://www.inoxproducts.com/hs-fs/hubfs/escutcheons/MU_lever_low.png?width=100&height=600&name=MU_lever_low.png)
![MU Plate American Patio Line Drawings MU Plate American Patio Line Drawings](https://www.inoxproducts.com/hubfs/Multipoint%20trim/MU%20Plate%20American%20Patio%20Line%20Drawings.png)

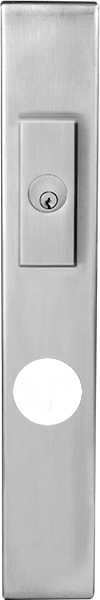

MU Plate
10-1/2" x 1-5/8" x 7/16"
(268mm x 42mm x 11mm)
![BP_lever_low BP_lever_low](https://www.inoxproducts.com/hubfs/escutcheons/BP_lever_low.png)
![BP Plate American Patio Line Drawings BP Plate American Patio Line Drawings](https://www.inoxproducts.com/hubfs/Multipoint%20trim/BP%20Plate%20American%20Patio%20Line%20Drawings.png)
BP Plate
10-1/2" x 1-5/8" x 7/16"
(268mm x 42mm x 11mm)
Radial Corners
Lever Options
All INOX designer levers are standard options for multipoint lock sets.
Finishes
Standard
![32 swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/32%20swatch%20lever%20221.jpg?width=200&name=32%20swatch%20lever%20221.jpg)
32 Bright Stainless Steel
![32D swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/32D%20swatch%20lever%20221.jpg?width=200&name=32D%20swatch%20lever%20221.jpg)
32D Satin Stainless Steel
![10B swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/10B%20swatch%20lever%20221.jpg?width=200&name=10B%20swatch%20lever%20221.jpg)
10B Oil Rubbed Bronze
![19G swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/19G%20swatch%20lever%20221.jpg?width=200&name=19G%20swatch%20lever%20221.jpg)
19G Graphite Black
![PVD4 swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/PVD4%20swatch%20lever%20221.jpg?width=200&name=PVD4%20swatch%20lever%20221.jpg)
PVD4 Satin Brass
CeraMax
![C19G swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/C19G%20swatch%20lever%20221.jpg?width=200&name=C19G%20swatch%20lever%20221.jpg)
C19G Graphite Black
![C19 swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/C19%20swatch%20lever%20221.jpg?width=200&name=C19%20swatch%20lever%20221.jpg)
C19 CeraMax Flat Black
![CDB swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/CDB%20swatch%20lever%20221.jpg?width=200&name=CDB%20swatch%20lever%20221.jpg)
CDB Dark Bronze
![CGY swatch lever 221](https://www.inoxproducts.com/hs-fs/hubfs/finishes/CGY%20swatch%20lever%20221.jpg?width=200&name=CGY%20swatch%20lever%20221.jpg)
CGY Stormy Grey
Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.
