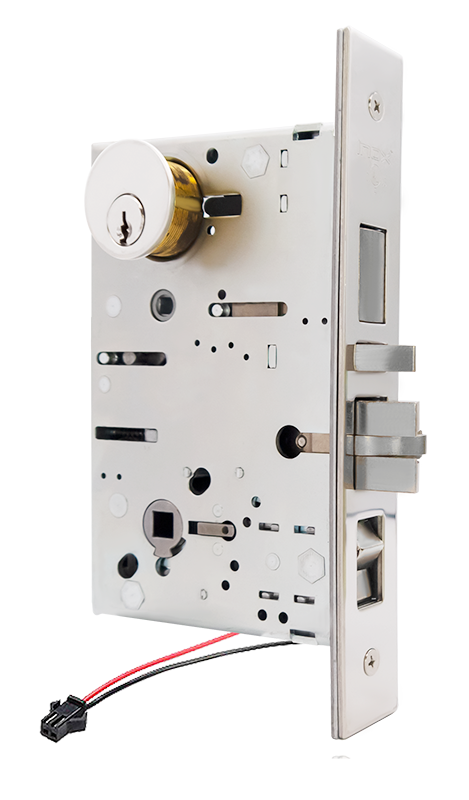

MC7000 Series
Electrified Mortise Locksets for Swing Doors
Heavy Duty, Grade 1 fire-rated locks that provide security and long-life operation & functionality for your toughest projects
Features

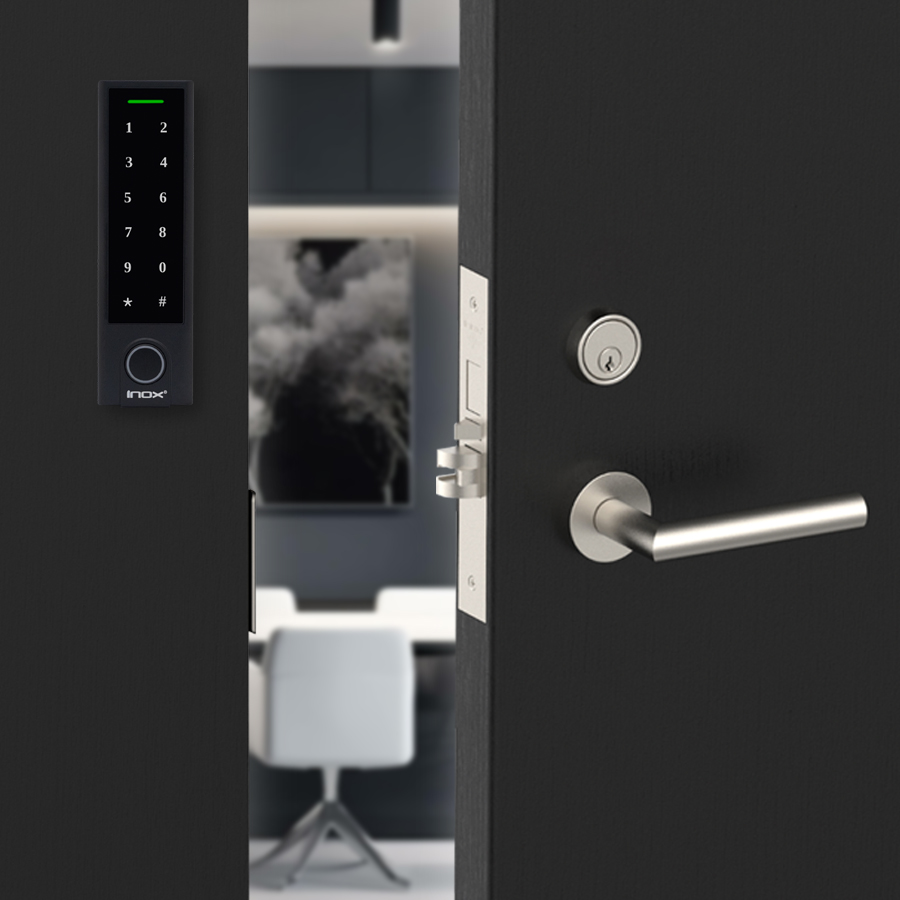

- Electrified mortise locks allow remote keyless access and egress control for applications where security and safety are critical
- Engineered to exceed 1 million cycles testing for high traffic applications
- Continuous-duty solenoids provide cooler operation
- Built with heavy-duty stainless steel components and lock body
- Auxiliary latch provides extra security by deadlocking when door is closed
- Emergency egress in case of crisis
- UL listed for 3 hour fire doors
![MC7000_Glamour_AdobeStock_303323920_3 MC7000_Glamour_AdobeStock_303323920_3](https://www.inoxproducts.com/hubfs/MC7000_Glamour_AdobeStock_303323920_3.jpg)
Specifications
Standard Door Thickness: 1-3/4" (44.5mm)
Thick Door Kits available
Backset: 2-3/4" (70mm)
Bolt: 1" (25.4mm)
Latchbolt: 3/4" (19mm) throw with anti-friction
Lever Spindle: 8x8mm square
Thumbturn Spindle: 5x5mm square
Case Size: 4" x 6-1/16" x 15/16"
(102mm x 154mm x 24mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Function: EL (Fail Safe) - Electrically Locked
EU (Fail Secure) - Electrically Unlocked
Voltage: 12V DC or 24V DC
Current: 0.3A at 24V DC or 0.6A at 12V DC Handing: Specify handing
Lockcase: Field reversible without disassembly
Cylinder: Schlage C keyway 6 pin mortise with 2 keys
Optional keyways, keying services, and IC cores available;
Compliance
- ANSI/BHMA A156.13 Grade 1 Mortise Locks
- UL Listed for 3 hour fire doors
- CAN/ULC S104 up to 3 hours
- UBC Standard 7-2 (1997) NFPA 252
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA101 National Fire Protection - Life Safety
- ANSI/BHMA A156.18 Finishes
- ANSI A117.1 ADA Accessibility
- Electrification: ANSI/UL634, ANSI/UL294, ANSI/UL10C
Functions
![LD-MC7000-40 LD-MC7000-40](https://www.inoxproducts.com/hubfs/LD-MC7000-40.jpg)
Privacy 7040EU Fail Secure
(ANSI:F22)
- Outside lever electrically unlocked by 12V/24V DC
- In case of power failure, door returns to locked position (Fail Secure)
- Inside thumbturn locks and unlocks outside lever
- Release slot outside in case of emergency
- Inside lever is always unlocked
![LD-MC7000-40 LD-MC7000-40](https://www.inoxproducts.com/hubfs/LD-MC7000-40.jpg)
Privacy 7040EL Fail Safe (ANSI:F22)
- Outside lever electrically locked by 12V/24V DC
- In case of power failure, door returns to unlocked position (Fail Safe)
- Inside thumbturn locks and unlocks outside lever
- Release slot outside in case of emergency
- Inside lever is always unlocked
![LD-MC7000-50 LD-MC7000-50](https://www.inoxproducts.com/hubfs/LD-MC7000-50.jpg)
Storeroom 7050EU Fail Secure (ANSI:F07)
- Outside lever unlocked by 12V/24V DC
- In case of power failure, door returns to locked position (Fail Secure)
- Latchbolt retracted by key outside or inside lever
- Auxiliary latch deadlocks latchbolt when door is closed
- Inside lever allows emergency egress
![LD-MC7000-50 LD-MC7000-50](https://www.inoxproducts.com/hubfs/LD-MC7000-50.jpg)
Storeroom 7050EL Fail Safe (ANSI:F05)
- Outside lever locked by 12V/24V DC
- In case of power failure, door returns to unlocked position (Fail Safe)
- Latchbolt retracted by key outside or inside lever
- Auxiliary latch deadlocks latchbolt when door is closed
- Inside lever allows emergency egress
![7438-Picture 7438-Picture](https://www.inoxproducts.com/hubfs/7438-Picture.jpg)
Entrance without Toggle
7438EU Fail Secure
(ANSI:F20)
- Outside lever continuously unlocked by 12V/24V DC
- In case of power failure, outside lever keeps lever locked (Fail Secure)
- Key outside or thumbturn inside locks/unlocks outside lever
- Inside lever always allows emergency egress
![7438-Picture 7438-Picture](https://www.inoxproducts.com/hubfs/7438-Picture.jpg)
Entrance Without Toggle 7438EL Fail Safe
(ANSI:F20)
- Outside lever continuously locked by 12V/24V DC
- In case of power failure, outside lever remains unlocked (Fail Safe)
- Key outside or thumbturn inside locks/unlocks outside lever
- Inside lever always allows emergency egress
Options

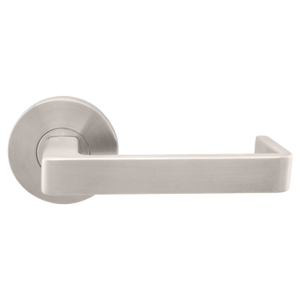

X Series Levers
Grade 1 cast stainless steel trim designed for mechanical strength without sacrificing beautiful design. Includes ADA-compliant options

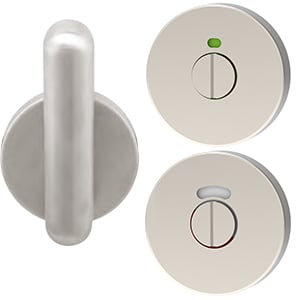

Thumbturns
Enable your privacy functions with design options and indicator windows. ADA options available

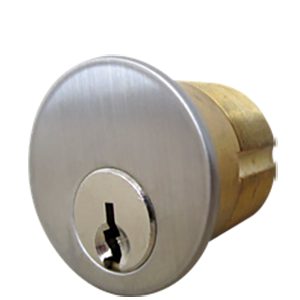

Cylinders
Explore domestic and European cylinders, keying options and trim collars
Finishes
Standard Finishes
![32_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/32_squareA.jpg?width=200&name=32_squareA.jpg)
32 Bright Stainless Steel
![32D_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/32D_squareA.jpg?width=200&name=32D_squareA.jpg)
32D Satin Stainless Steel
![10B_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/10B_squareA.jpg?width=200&name=10B_squareA.jpg)
10B Oil Rubbed Bronze
Ceramax Finishes
![C19G_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/C19G_squareA.jpg?width=200&name=C19G_squareA.jpg)
C19G Graphite Black
![C19_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/C19_squareA.jpg?width=200&name=C19_squareA.jpg)
C19 CeraMax Flat Black
![CDB_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/CDB_squareA.jpg?width=200&name=CDB_squareA.jpg)
CDB Dark Bronze
![CGY_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/CGY_squareA.jpg?width=200&name=CGY_squareA.jpg)
CGY Stormy Grey
Custom finishes including CeraMax are available with MOQ and extended lead times.
