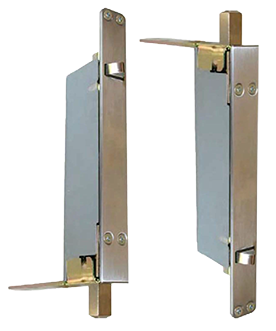

Automatic Flushbolt for Wood Doors

Forged construction with spring-loaded lever to project or retract bolt


  • Flushbolt is projected into frame header or floor when door is closed; automatically retracts when active door is opened
  • Steel body with Stainless Steel components
  • Fully automatic, non-handed operation
  • Spring override in case of misalignment
  • Spring-loaded lever projects or retracts bolt
  • Listed up to 1-1/2 hours on composite wood doors up to 8 feet
  • Limited 3 year warranty


Data Sheet
Three Part Specifications (coming soon)



Material: Steel and Stainless Steel
Projection: Bolts project 3/4" from top or bottom edge of door with 3/4" adjustment
Handing: Non-handed
Spring-loaded Lever to project or retract bolts


ANSI A156.3: Type 25
ANSI A117.1 and ADA for barrier-free accessibility
UL10C and UBC 7-2: Conforms
C-UBC: California Amended Uniform Builders Code
NFPA 80: National Fire Protection Association
NFPA 101: National Fire Protection - Life Safety

UL codes



26D Satin Chrome
26D Satin Chrome

Custom finishes are available with MOQ and extended lead times.
