Tubular Entrance Handlesets

NY / MH Tubular Entry Sets

Features

  • Engineered and designed in stainless steel for longevity, security, and beauty
  • Perfect for residential or multi-family unit entry
  • Inner trim pairs with any INOX designer lever for a modern but timeless look

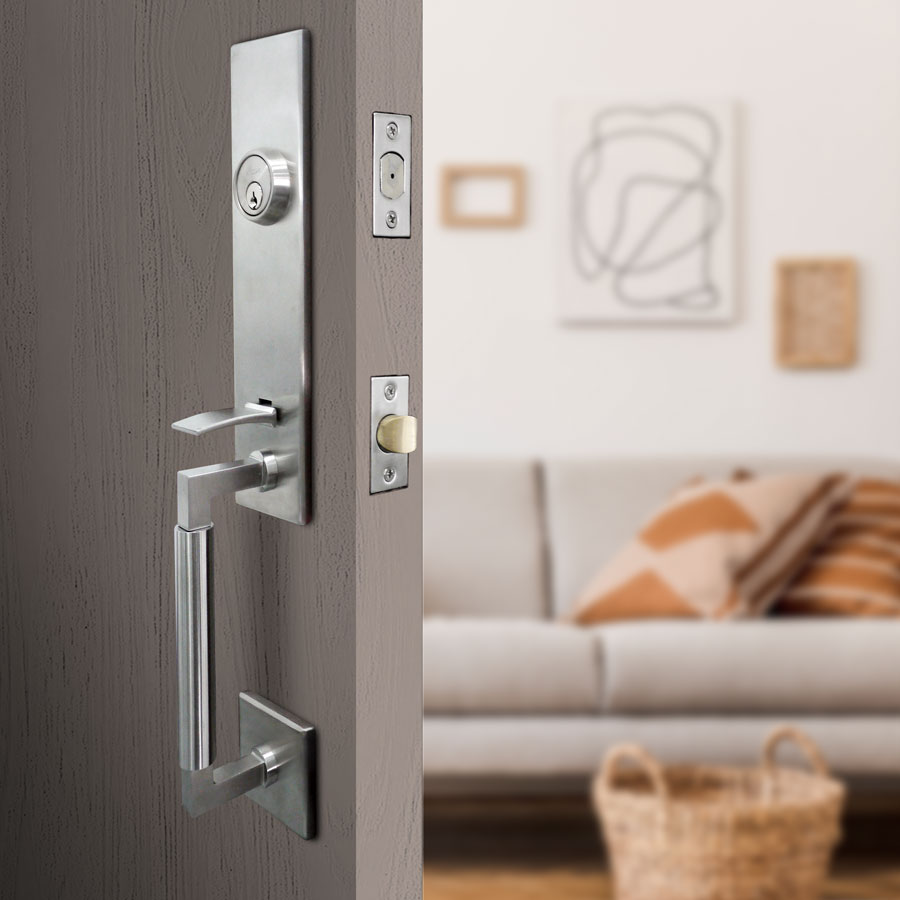

NY Tubular glamour

Specifications

Materials: Stainless Steel
Door Thickness: 1-3/4" (44mm) standard
Thick Door Kit available
Backset: 2-3/8" (60mm) standard
2- 3/4" (70mm) optional
Handing:
Please specify; latchbolt field reversible
Center Distance: Lever to Cylinder 5-1/2" (140mm)
Cylinder & Keys: 5 pin Schlage C keyway with 2 keys
Leverset Thru-bolts: 2 EA M4x35mm
Deadbolt Thru-bolts: 2 EA MSx50mm

Functions

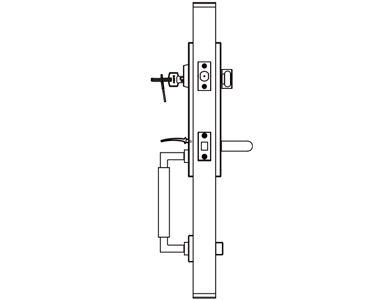

Tubular Entrance Function

Entrance

  • Deadbolt is locked or unlocked by key outside or thumbturn inside
  • Thumbpiece from outside or lever from inside retracts latchbolt
  • Deadlock and latch are not interconnected

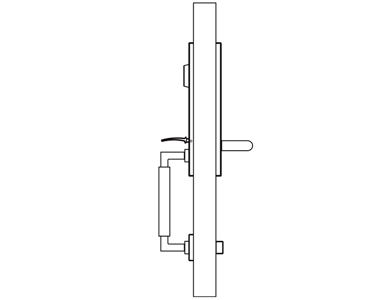

Tubular Dummy Function

Entry Dummy

  • NY / MH trim with rim dummy cylinder outside
  • Dummy plate escutcheon inside

Tubular Handleset Options

New York (NY)

MH_Entry_Tub
TubularNY Line Drawing

Manhattan (MH)

NY_Entry_Tub

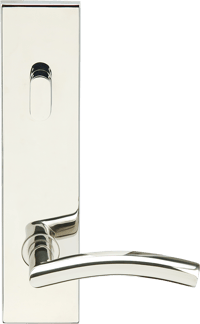

SF104 32
Inside Plate
Inside trim features a beautiful SF plate, lever low, with tubular lock
NY_callout_tubular_cylinder
Tubular Cylinder
Beveled cylinder with a tubular deadbolt

Finishes

Standard

32 swatch lever 221
32 Bright Stainless Steel
32D swatch lever 221
32D Satin Stainless Steel
10B swatch lever 221
10B Oil Rubbed Bronze
19G swatch lever 221
19G Graphite Black

CeraMax

C19G swatch lever 221
C19G Graphite Black
C19 swatch lever 221
C19 CeraMax Flat Black
CDB swatch lever 221
CDB Dark Bronze
CGY swatch lever 221
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.
