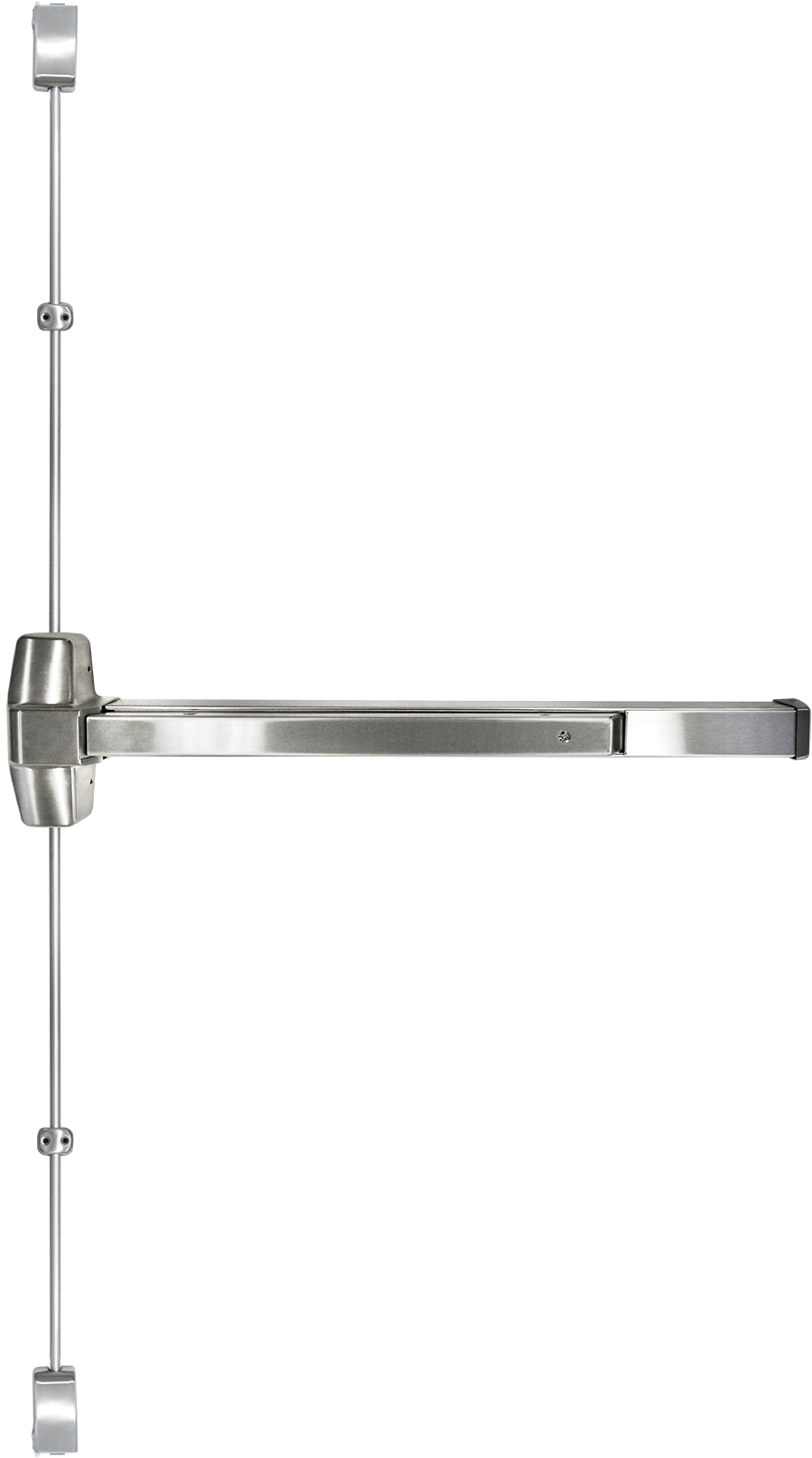

ED70-SVR/ED70F-SVR
Surface Mounted Vertical Rod Exit Device
ANSI/BHMA 156.5 Grade 1 Heavy Duty
Features
- INOX ED70-SVR and ED70F-SVR vertical rod exit devices are suited for most single and double door applications
- UL listed for Panic Exit Hardware. Meets ANSI A156.3 Grade 1 standards; installs on a standard 161 cut-out
- Non-handed with a universal design that allows them to easily retrofit the Von Duprin 98/99 series and Sargent 88 series installations when paired with INOX exit device trim
- Fits all doors 36" - 48" in width, 84" - 96" in height, and 1-3/4" in thickness. 36" x 96" and 48" x 84" are available as special order items. Cylinder dogging is also available as an option on non-rated device
![ED70 SVR 32D A ED70 SVR 32D A](https://www.inoxproducts.com/hs-fs/hubfs/Keyed%20Cylinders/ED70%20SVR%2032D%20A.png?width=900&height=1616&name=ED70%20SVR%2032D%20A.png)
Specifications
Device Functions: Exit device only, trims available separately
Device Lengths:
3': 2'2" to 3' (660mm to 914mm) door size
4': 2'9" to 4' (838mm to 1219mm) door size
Strikes:
Standard Panic: Top Dull Black Strike (EDLSR-227)
Standard Panic: Bottom Dull Black Strike (EDLSR-221)
Dogging Feature: Hex Key Dogging available on Non-Fire Rated devices only
Dogging Options: Cylinder Dogging available on complete devices only, not as separate kits
Electric Options: Alarm Kit 36" and 48" available
Miscellaneous Options: GBK Glass Bead Kit
Fasteners & Sex Bolts:
Furnished with wood & machine screws
Thru-bolts standard on Fire-Rated devices
Latch Bolt: Stainless Steel 3/4" (19mm) throw
Device Centerline from Finished Floor: 41" (1041mm)
Center Case Dimensions: 7-7/8" x 2-9/16" x 1-7/8" (200mm x 65mm x 48mm)
Mechanism Case Dimensions: 1-9/16" w x2" (41mm x 51mm)
Top & Bottom Latch Case
Standard Panic: 3-15/16" x 2-1/8" x 1-3/8" (100mm x 54mm x 35mm)
Fire Rated: 3-15/16" x 2-11/16" x 2-1/16" (100mm x 68mm x 52mm)
Vertical Rods
36" Door:
Top Rod - 43-1/4" (1099mm)
Bottom Rod - 37-3/4" (959mm)
48" Door: Top Rod - 56-1/16" (1424mm)
Bottom Rod - 37-3/4" (959mm)
Projections:
Pushbar Neutral 2-1/2" (64mm)
Pushbar Depressed 1-3/4" (44mm)
Compliance
- ANSI/BHMA A156.3 Grade 1Exit Devices
- ANSI/BHMA A156.29 Exit Lock and Alarm
- UL Listed for ANSI/UL10B and UL10C, CAN/ULC S104 up to 3 Hours
- UBC Standard 7-2 (1997) NFPA 252
- ANSI/UL 305 and CAN/ULC-S132
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA101 National Fire Protection - Life Safety
- ANSI/BHMA A156.18 Finishes
- ANSI A117.1 ADA Accessibility
Optional Trim for RIM, SVR, LBR
Cylindrical Trim
![ED93_Trim_1 ED93_Trim_1](https://www.inoxproducts.com/hubfs/ED93_Trim_1.jpg)
![ED93_Trim_2 ED93_Trim_2](https://www.inoxproducts.com/hs-fs/hubfs/ED93_Trim_2.jpg?width=405&height=215&name=ED93_Trim_2.jpg)
07 Lever
Projection: 2-7/16”
Cylinder Type: In-lever cylinder for Entry and Night Latch/Storeroom functions
Escutcheon Trim
![40 40](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/40.png?width=120&height=200&name=40.png)
![ES drawing ES drawing](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/ES%20drawing.jpg?width=520&height=544&name=ES%20drawing.jpg)
07 Lever
Projection: 2-1/2”
Cylinder Type: In-escutcheon cylinder for Entry and Night Latch/Storeroom functions
![ES chart ES chart](https://www.inoxproducts.com/hubfs/Exit%20Device/ES%20chart.jpg)
Optional Trim for RIM,SVR,LBR
Thumbpiece and Plate Trim
![45 45](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/45.png?width=37&height=200&name=45.png)
![TP drawing TP drawing](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/TP%20drawing.jpg?width=362&height=518&name=TP%20drawing.jpg)
Plate Size: 14-9/16" x 2-5/8"
Pull Projection: 1-3/4"
Cylinder: 1-1/4" Mortise Cylinders included for Thumb-piece Plate (TP) Entry and Storeroom function.
Rim Cylinder for Pull Plate (PP) Night Latch function.
Schlage C keyway standard. Specify "IC" for IC Core Cylinders. Other keyways available by special order.
![TP chart TP chart](https://www.inoxproducts.com/hubfs/Exit%20Device/TP%20chart.jpg)
Wing Pull
![Wing Pull Wing Pull](https://www.inoxproducts.com/hubfs/Exit%20Device/Wing%20Pull.jpg)
Strikes
Strikes for ED70-SVR/ED70F-SVR Vertical Rod Exit Device
![36 36](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/36.png?width=52&height=100&name=36.png)
EDLSR-227
Top Strike for ED70-SVR/ED70F-SVR Vertical Rod Exit Device
![227 227](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/227.jpg?width=698&height=358&name=227.jpg)
![4 4](https://www.inoxproducts.com/hs-fs/hubfs/Exit%20Device/4.png?width=23&name=4.png)
EDLSR-221
Bottom Strike for ED70-SVR/ED70F-SVR Vertical Rod Exit Device

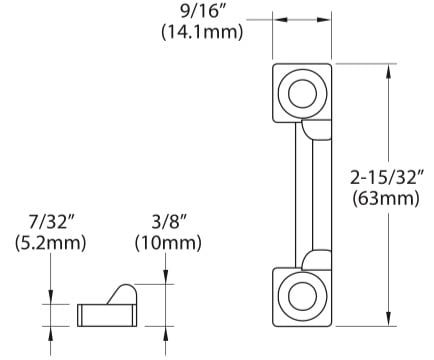

![221 line drawing 221 line drawing](https://www.inoxproducts.com/hs-fs/hubfs/221%20line%20drawing.jpg?width=434&name=221%20line%20drawing.jpg)
Finish
Standard
![32D_squareA](https://www.inoxproducts.com/hs-fs/hubfs/finishes/32D_squareA.jpg?width=200&name=32D_squareA.jpg)
32D Satin Stainless Steel
Custom finishes may be available with MOQ and extended lead times.
