LA/SF Tubular Entry Sets
Stainless Steel sets for residential entry door application
Features
- Beautiful option for internal tubular locksets
- Keyed single or double cylinder entry functions available
- Grade 2 TL4 tubular latch for longevity and strength; 3 hour fire-rated latch available
- Matches SF and LA escutcheons across the INOX line and pairs with any INOX designer lever to ensure attractive, uniform design across the property

Specifications
Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
Thick Door Kits available
Backset: 2-3/8" (60mm) standard
2-3/4" (70mm) optional
Handing: Specify handing for all functions
Latchbolt is field reversible
Spindle: 8 x 8mm square
Latch: Grade 2 TL4 tubular latch
3-hour fire-rated version available
Latch Faceplate: 1" x 2-1/4"
Standard square corner
Latch Strike: Both full lip strike and T-strike with square corners provided
Radius corner faceplate and strike or ASA strike, also available. Order separately
Cylinder: Schlage C 5 keyway, 5 pin, 2 keys included
Functions

Entry (Single Cylinder)
- Deadbolt locked or unlocked by key outside or thumbturn inside
- When deadbolt unlocked, both levers operate latch in passage function
- Deadbolt and latch are not interconnected

Entry (Double Cylinder)
- Deadbolt is locked or unlocked by key inside or outside
- When deadbolt is unlocked, both levers operate latch in passage function
- Deadbolt and latch are not interconnected

Dummy Entry
- Lower Lever position
- Both levers are inactive
- Dummy cylinder is inactive

Dummy Pair
- Lower Lever position
- Both levers are inactive
Escutcheon Options
INOX Tubular Entry sets are available in two beautiful escutcheons to enhance your décor

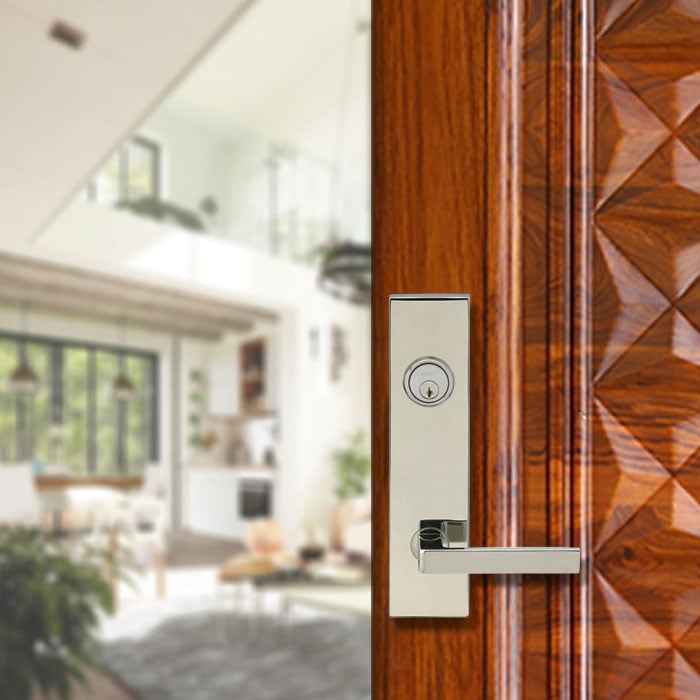

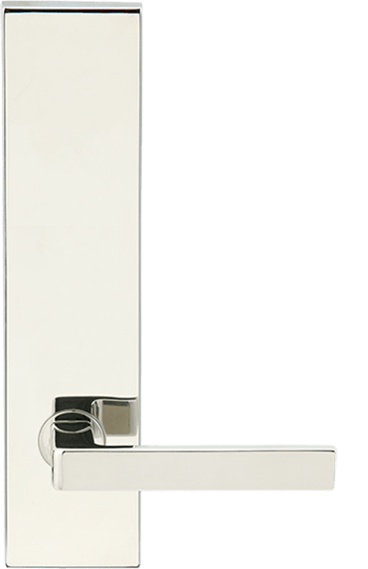

SF Plate
10-1/2" x 2-1/2" x 7/16"
(267mm x 63mm x 11mm)

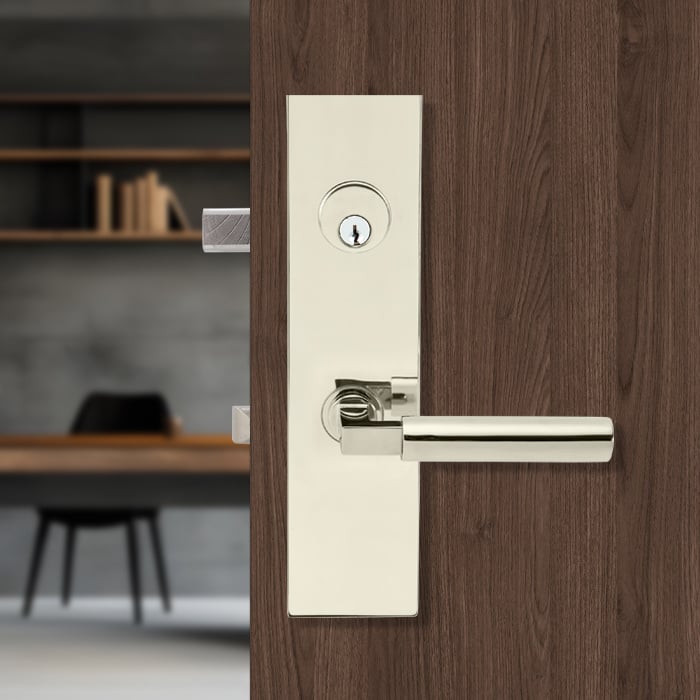

LA Plate
10-1/2" x 2-1/2" x 7/16"
(267mm x 63mm x 11mm)
Radial Corners
Lever Options
LA/SP Tubular Entry Sets pair beautifully with any of these INOX designer levers or knobs.
Finishes
Standard

32 Bright Stainless Steel

32D Satin Stainless Steel

10B Oil Rubbed Bronze

19G Graphite Black

PVD4 Satin Brass
CeraMax

C19G Graphite Black

C19 CeraMax Flat Black

CDB Dark Bronze

CGY Stormy Grey
Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.
