PD97PT Lockcase

PD97ATL

Electrified Mortise Locks with Auto-Locking for Sliding Doors

Grade 1 Sliding Door Lock designed for easy integration with access control system

Features

The Grade 1 INOX PD97ATL integrates with most access control products, including keypads and biometric readers, combining smart door lock capabilities with electronic lock features to provide keyless and keyed locking and latching solutions. Built-in DPS and DBM sensors enable auto-locking and auto-latching features. Powered through strike for an easier installation than standard electric mortise locks.

Meets ANSI A117.1 Accessibility (ADA Compliant) and UL Standards for UL294 (Safety Access Control System Units) and UL1034 (Safety Burglary-Resistant Electric Locking Mechanisms) and is recommended for:

  • Hospitality
  • Healthcare
  • Commercial
  • Office
  • Residential

Downloads

Data Sheet and How to Order
Templates
Installation Instructions - Coming Soon

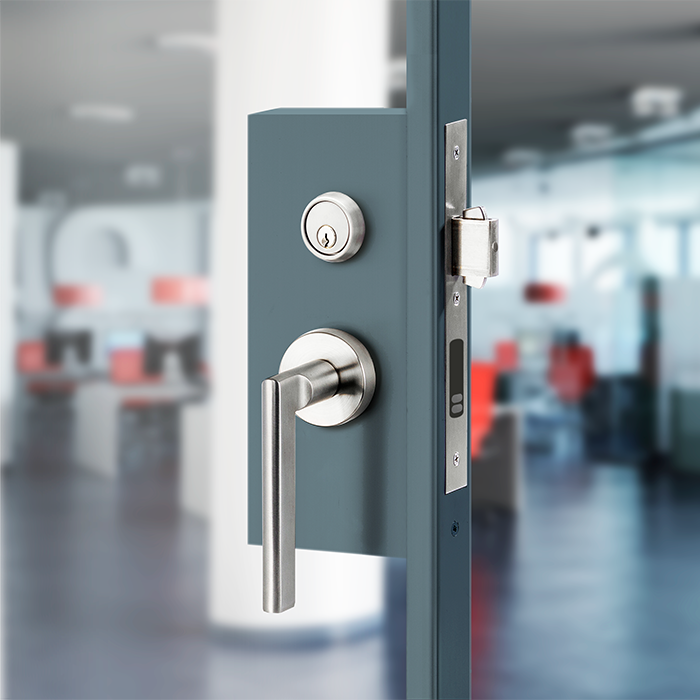

PD97PT-ATL-1

Specifications

Standard Door Thickness: 1-3/4" (45mm) Standard
1-3/8" (35mm) with Thin Door Ki - XGT rose only
2" to 2-1/4" (50mm - 57mm) Thick Door Kit available
Backset: 2-3/4" (70mm) and 2-1/2" (63.5mm)
Lever to Cylinder Center to Center: 3-7/8" (98mm)
Lever to Thumbturn Center to Center: 2-11/16" (68mm)
Lever Spindle: 8mm x 8mm square
Thumbturn Spindle: 5mm x 5mm square
Handing: Specify handing
Cylinder: Schlage C keyway 6 pin, 1-1/4" mortise cylinder with 2 keys (standard); optional SFIC and LFIC housing and cores available
CAM: CAM01-SCL Clover Cam

Electrical Specifications

Voltage: 12/24 DC
Max Current: 560mA (Lock Body), 40mA (Strike), 90mA (Keypad), 30mA (Handwave or Relay) 20mA (On/Off Switch for Handwave)

Compliance

  • UL1034 Burglary-Resistant Electric Locking Mechanisms
  • UL294 Standard for Access Control System Units
  • ANSI/BHMA A156.25 Electrified Mortise Locks
  • ANSI/BHMA A156.18 Finishes
  • ANSI A117.1 ADA Accessibility
  • Meets ANSI/BHMA Grade 1 Standards

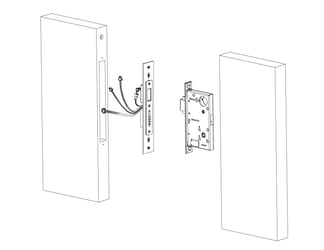

PD97PT_power
Powered from the wall to the strike with a low 12/24 volt DC current, the Grade 1 PD97ATL makes installation easy.
PD97PT_noDrilling
When door is closed, strike connects with lock, and door auto-latches or auto-locks, based on the function installed. Fail secure; door remains locked or unlocked, whatever state it was in when power fails

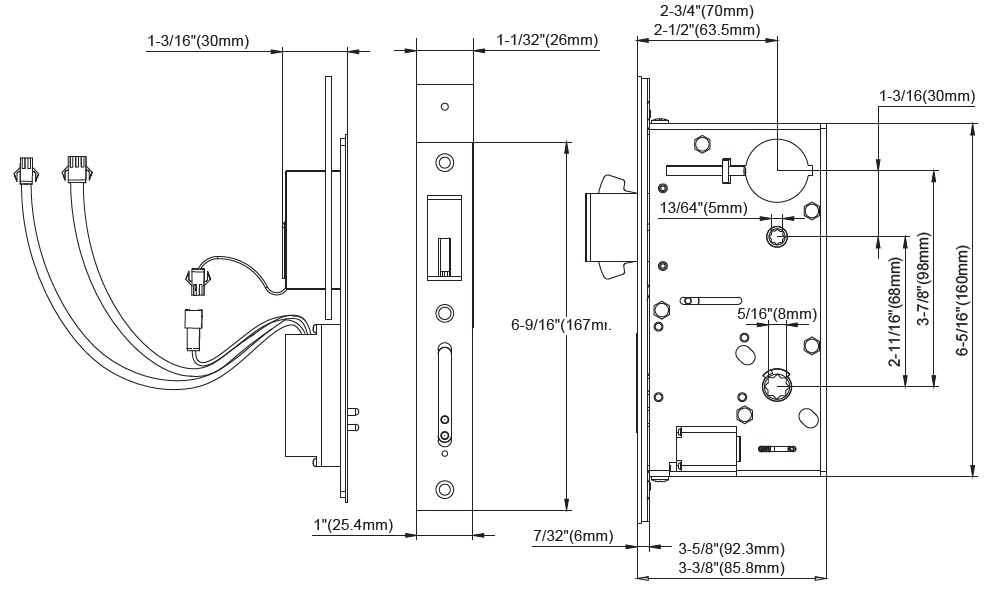

PD97PT-ATL-LD

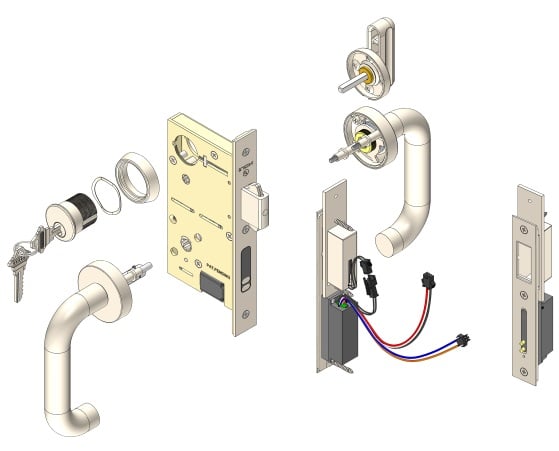

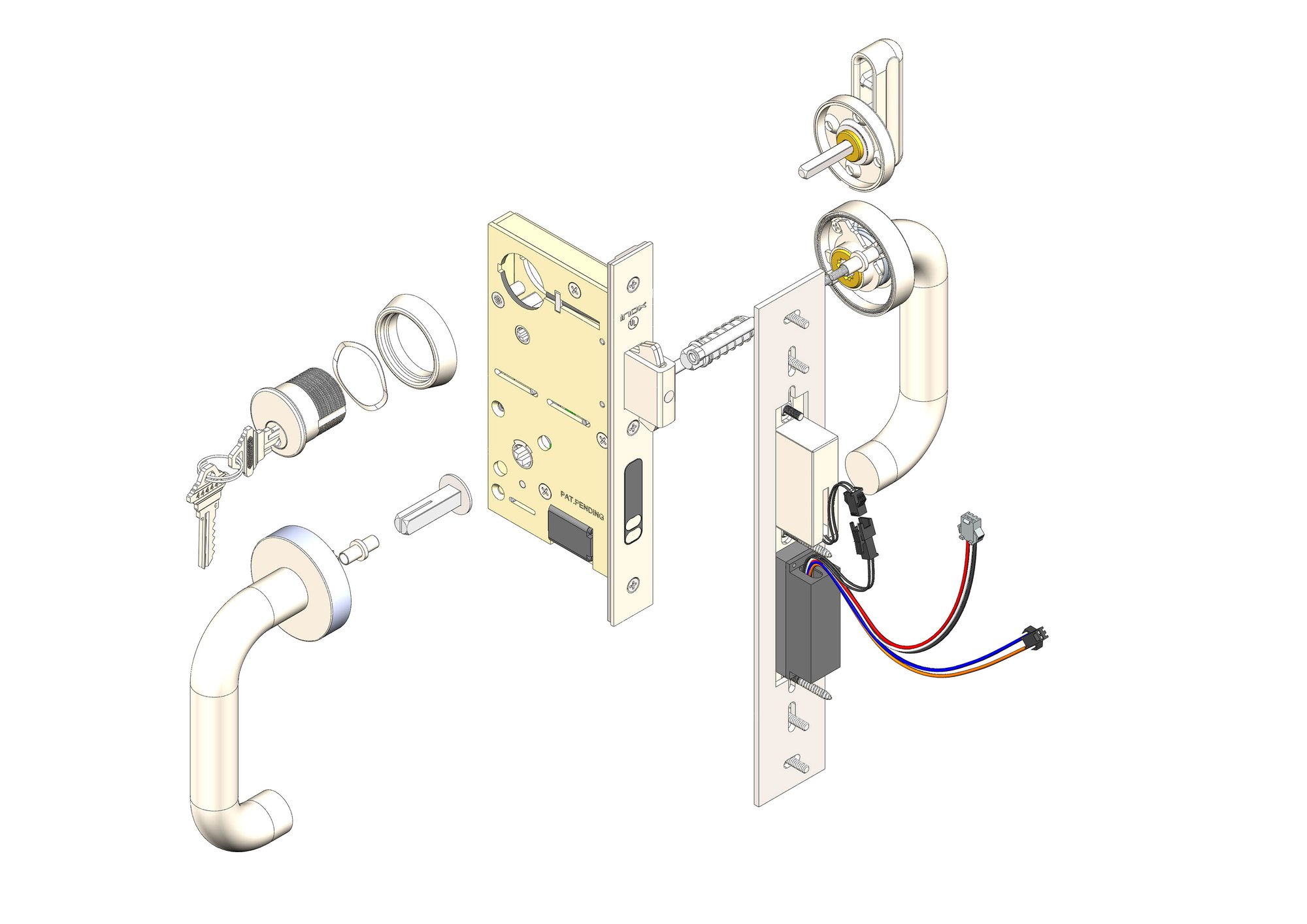

PD97PT-ATL-EXPLODO

Functions

PD97PT-ATL-Passage-Func

Passage - PD97ATL10

  • Latchbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Both levers active at all times
PD97PT-ATL-Patio-Exit-Func

Patio/Exit - PD97ATL60

  • Deadbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Thumbturn inside throws/retracts deadbolt to lock/unlock door
  • Outside lever is rigid at all times
  • Inside lever unlocks deadbolt for emergency egress
PD97PT-ATL-Entry-Office-Func

Entry/Office - PD97ATL53

  • Latchbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Insert and turn key from outside to throw/retract latchbolt to lock/unlock door
  • Thumbturn inside throws/retracts latchbolt to lock/unlock door
  • Inside switch used to activate or deactivate outside handwave; when door is locked and handwave deactivated, entrance by key only
  • Outside lever is rigid at all times
  • Inside lever always unlocks latchbolt for emergency egress

PD97PT-ATL-Storeroom-Func

Storeroom - PD97ATL80

  • Latchbolt projected or retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike
  • Key from outside throws/retracts latchbolt to lock/unlock door
  • Door cannot be locked from inside
  • Outside lever is rigid at all times
  • Inside lever unlocks latchbolt for emergency egress

Options

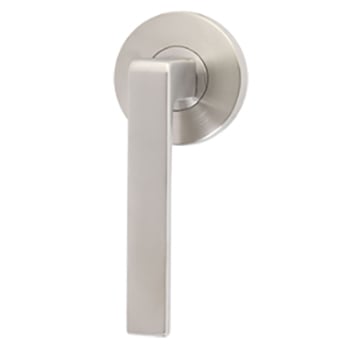

XSeries_345_Image

X Series Levers

Grade 1 cast stainless steel trim designed for mechanical strength without sacrificing beautiful design. Includes ADA-compliant options.

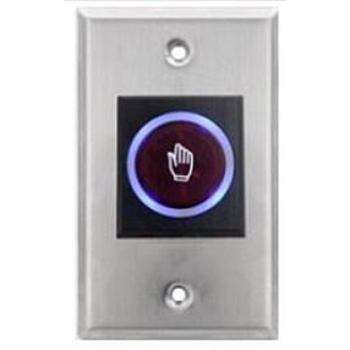

Hand_Wave_Image

Extended Access Controls

Accessories for convenience, contactless entry when door is unlocked, and additional power and security, all with low 12/24 DC power.

tt07_thumbturn_sans_indicator_ada

Thumbturns

Enable your privacy functions with design options and indicator windows. ADA options available.

Cylinder_Image

Cylinders

Explore domestic and European cylinders, keying options and trim collars.

Finishes

Standard

32_squareA
32 Bright Stainless Steel



32D_squareA
32D Satin Stainless Steel

CeraMax

C19G_squareA
C19G Graphite Black



C19_squareA
C19 CeraMax Flat Black



CDB_squareA
CDB Dark Bronze



CGY_squareA
CGY Stormy Grey

Custom finishes including CeraMax are available with MOQ and extended lead times.
