CX Series
Heavy Duty Commercial Deadbolts
ANSI/BHMA Grade 1
Features
- Solid brass deadbolt with hardened steel core and 1" (25mm) throw exceeds ANSI Grade 1 security against kick-in and saw attack
- 2-1/2" diameter solid forged brass anti-torque housing design exceeds ANSI Grade 1 security against hammer and crowbar prying attack
- High precision, pick-resistant sold brass 6 pin cylinder with anti-drill ball bearings in C Keyway meets ANSI Grade 1 security
- Extra strong, all-steel latch case and mechanism
- ADA compliant, ergonomically designed solid brass thumbturn

Specifications
Door Thickness: 1-9/16”(40mm) ~ 2”(51mm) doors standard
Backset: 2-3/8"(60mm) or 2-3/4"(70mm) Handing: Non-handed
Exposed Trim: 2-1/2" (63.5mm) diameter solid brass, one-piece design
Faceplate: 1-1/8”(28.6mm) x 2-1/4”(57mm) with square corners stainless steel or brass faceplate.
Deadbolt: 1”(25mm) throw deadbolt with saw-resistant hardened steel core
Strike: 1-1/8”(28.6mm) x 2-3/4”(70mm) with steel reinforcement
Cylinder & Keys: 6-pin anti-pick cylinder in Schlage C keyway keyed different with 2 brass keys per lock. Small Format Interchange Core (SFIC) available by specifying IC cores, order separately
Keying Options: Keyed Alike, Master keying, Grand Master Keying, and Construction Keying available by special order. Nickel silver keys available by special order.
Compliance
- ANSI/BHMA A156.36 & A156.5 Grade 1
- UL Listed for UL10B and UL10C, up to 3 Hours
- UBC Standard 7-2 (1997) NFPA 252
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA101 National Fire Protection - Life Safety
- ANSI/BHMA A156.18 Finishes
- ANSI A117.1 ADA Accessibility
Functions

CX660 (ANSI: E1251)
Single Cylinder
- Deadbolt thrown or retracted by key from outside or thumbturn inside
- Bolt automatically deadlocks when fully thrown

CX661 (ANSI: E2161)
Cylinder Only x Blank Plate
- Deadbolt thrown or retracted by key outside
- Blank plate with exposed screws inside

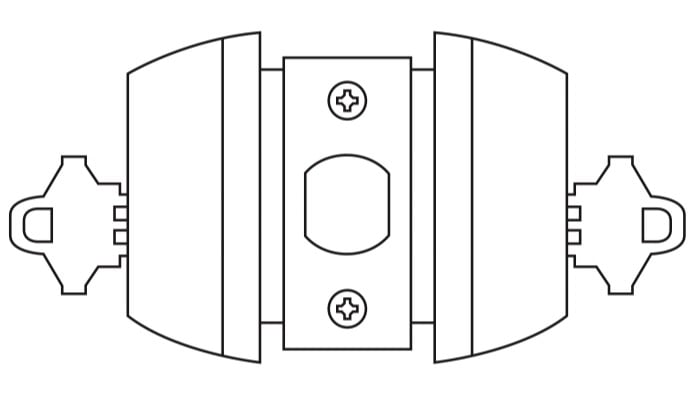

CX662 (ANSI: E2141)
Double Cylinder
- Deadbolt thrown or retracted by key from either side
- Bolt automatically deadlocks when fully thrown

CX663 (ANSI: E2171)
Classroom Deadbolt
- Deadbolt thrown only by key outside
- Deadbolt retracted by key outside or thumbturn inside

CX680 (ANSI: E2191)
Door Bolt
- Deadbolt operated by thumbturn only. No outside trim. Bore halfway through door for installation visible from one side of door only

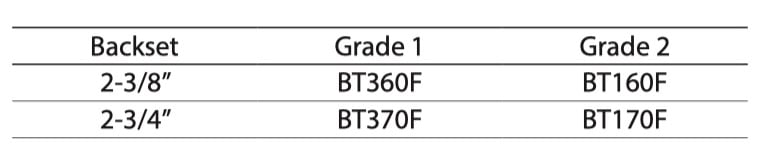

Deadbolt



Deadbolt Strike
Deadbolt Strike 1-1/8” (28mm) x 2-3/4” (70mm) with reinforcement plate, dustbox and 3" (76mm) screws

LSR-BT1
Finishes
Standard

26D Satin Chrome
CeraMax

C19G Graphite Black

C19 CeraMax Flat Black

CDB Dark Bronze

CGY Stormy Grey
Custom finishes including CeraMax are available with MOQ and extended lead times.
