Roller Latches
Forged Brass commercial roller latches with adjustable projection
Features
- Automatic actuation; closing of door causes nylon roller to fall into indentation in strike, latching door
- Roller projection easily adjusted using screws on face of unit
- Forged Brass (RL300) or Brass and Stainless Steel (RL320) construction
Downloads
Data Sheet
Three Part Specifications (coming soon)
Compliance
- ANSI A156.16 E19091
- C-UBC California Amended Uniform Builders Code
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA 101 National Fire Protection - Life Safety
Roller Latch Options

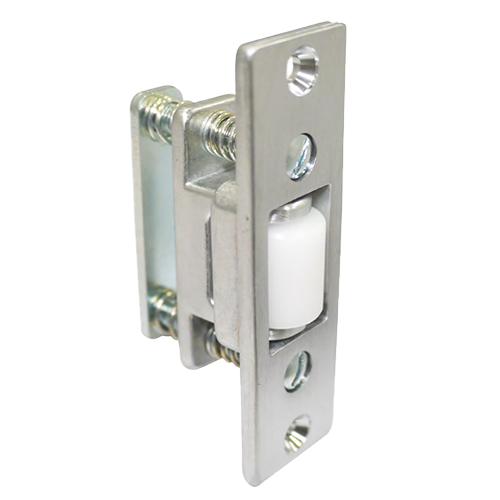

RL300
Body: 1" x 3-3/8" x 1-5/8"
Strike: 1-11/16" x 2-3/16" x 5/32"
Maximum Projection: 3/8"
Roller: Nylon

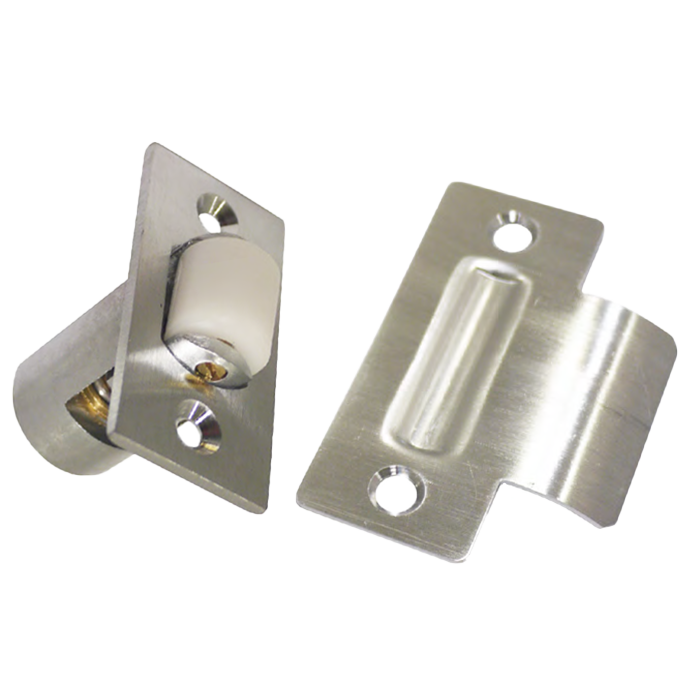

RL320
Body: 1-1/8" x 2-1/4" x 1-3/4"
Strike: 1-1/8" x 2-3/4" x 1/16"
Maximum Projection: 1/2"
Roller: Nylon
Other: Fits heavy duty cylindrical lock cutout
