Surface-mounted Sliding & Barn Door Wall Strike

Adjustable, easy to install strike for use with PD5000, PD8000, and PD9000 series of mortise locks for sliding doors


Now there is a solution that is both effective and aesthetic to enable sliding and barn doors to surface latch: the INOX WS90 surface-mounted wall strike. The WS90 features an ingenious patent-pending design that provides an interlocking mounting system and bracket for tamper-resistant security. For the PD96 auto-latching lock, order a WS90L.


WS90 Data Sheet
Installation Instructions
Three Part Specifications (coming soon)

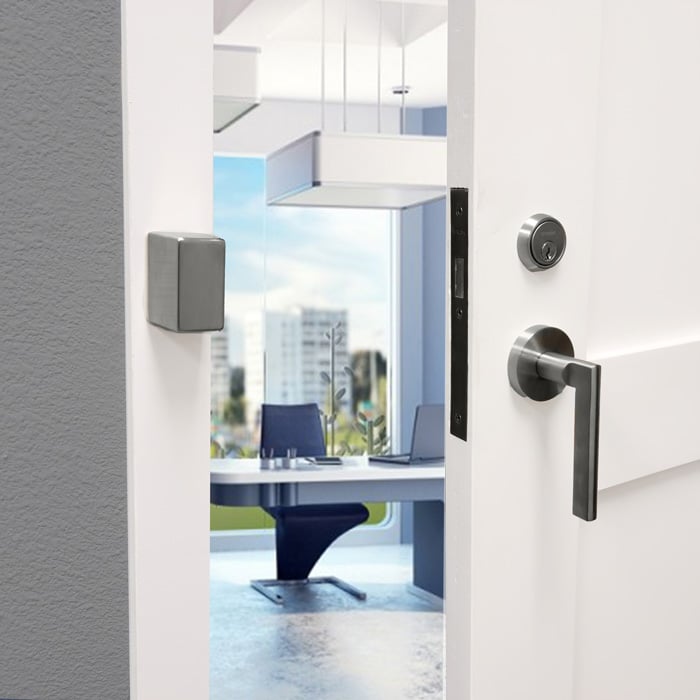

WS90 Office

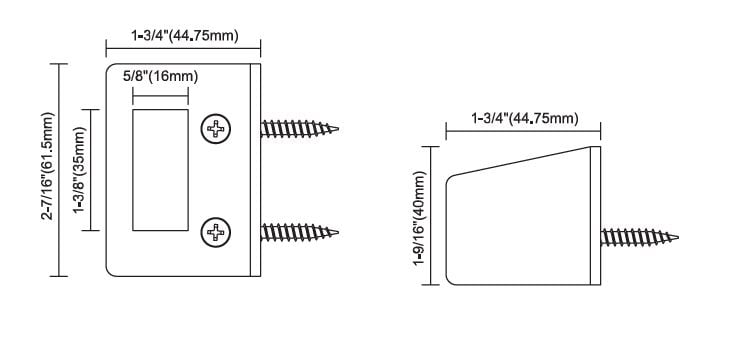

Dimensions: 2-7/16" x 1-3/4" x 1-9/16 x 1-3/4"
Wall to Center Line of Strike: 1-1/4" (32mm)
Handing: Non-handed

Interlocking Bracket
The bracket not only provides added strength, but conceals all visible screws when door is locked, preventing tampering with strike or lock bolt
Shim for Spacing
Spacer included for adjustable projection up to 1/8" (3mm); additional shims can be ordered to ensure accommodation with track spacing from wall to strike
  • Aesthetic, easy to install solution to latch and lock sliding and barn doors
  • No visible screws or fasteners; helps prevent tampering with strike or lock bolt
  • Spacing shim to accommodate tracks with greater spacing from wall to center line of strike
  • Constructed of tough 304 Stainless Steel for strength and durability


Meet the WS90 Wall Strike

  • Stainless Steel construction
  • Interlocking Bracket for strength and security
  • Easy installation
  • Suitable for Hospitality, Multifamily, Mixed Use, Commercial, Industrial, and Office A Buildings

Allows Locking and Latching of...



32D Satin Stainless Steel


19G Graphite Black


Custom finishes including CeraMax are available with MOQ and extended lead times.
