TL3 Series Interior Locks

ANSI/BHMA 156.3 Grade 3 Tubular Lever Sets

Our TL3 Latch is an economical yet suitable option for a wide range of applications. Includes a 28 degree latch retraction to meet ADA requirements; pair with designer INOX trim for your most beautiful options.

Features

INOX TL3 series interior latch sets consist of beautifully designed trim made of stainless steel or forged brass, a spring-assisted interlocking chassis, and a grade 3 tubular latch, making it the perfect choice for residential, mixed use, and other hospitality openings.

A 28 degree short retraction latch design makes for easier operation, and hardened steel hubs inside the latch prevent lever sag for extended life of the set.

Meets ANSI/BHMA Grade 3 Standards. All lever sets meet ANSI A117.1 Accessibility (ADA Compliant).

Downloads

Data Sheet TL3
Data Sheet Privacy Bolt

Installation Instructions:
TL3 Installation Instructions

Templates:
  1. RA/SE/SH
  2. GA/GS

TL3-Glamour-image-2

Specifications

Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
Latch Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
Handing: Field reversible for Passage or Privacy functions; specify for Half Passage or Passage with Privacy Bolt
Latch Faceplate: 1" x 2-1/4" standard and 1/4" round corner
Lever Spindle: 8 x 8mm square
Lever Retraction: 28 degree

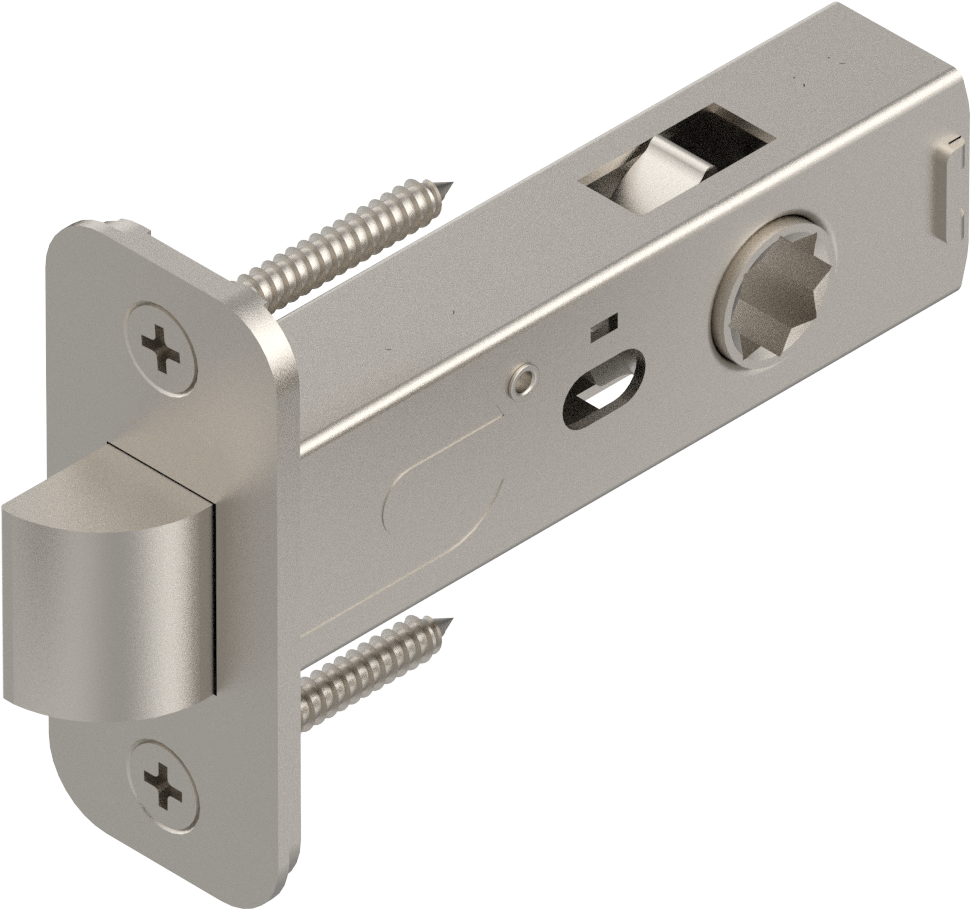

Standard Latch: TL3 Tubular Latch
Standard Strike: Ships with both full-lip strike and T-strike with 1/4" round corners.

Compliance

  • ANSI/BHMA A156.3 Grade 3
  •  UBC Standard 7-2 (1997) NFPA 252
  • NFPA 80 National Fire Protection-Fire Door Assembly
  • NFPA 101 National Fire Protection-Life Safety
  • ANSI/BHMA A156.18 Finishes
  • ANSI A117.1 ADA Accessibility for lever sets

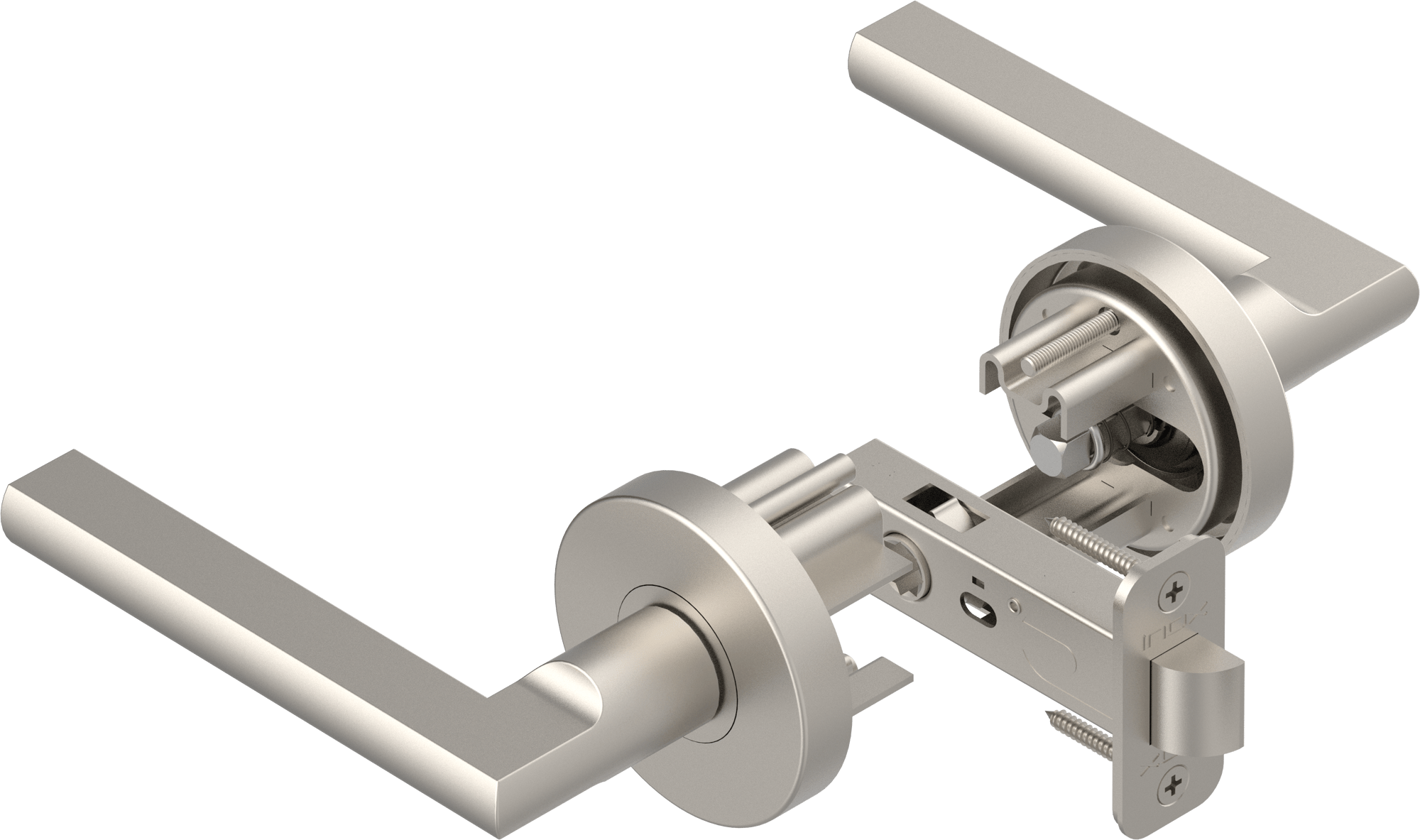

RA143-TL3-32D-2 SPACED

Long Lasting Quality

Stainless steel latch stabilizer bracket designed to handle heavy torque on the 28 degree latch retraction. Internal spring prevents lever droop so your handle remains horizontal for the life of the product.

Latch options include:

  • TL3 Grade 3
  • TL4 Grade 2, 3-Hour Fire Rated
  • Dummy Latch Kit for pre-drilled doors
  • TL7 Magnetic Rare Earth Magnetic Latch
Privacy_Pinning_stacked
Privacy Pin
All privacy latches come with M4 Privacy Pin and Emergency Release Key.
Tubular_lock_chassie_ld
Stabilizer
Stainless steel latch stabilizer bracket for top strength and longevity

Handing a Tubular Latch

Simple and quick to rehand an INOX TL3 Passage or Privacy leverset in the field. See video for a demonstration.

  • Easy snap and twist action
  • No tools required
  • Works for standard and 3-hour fire-rated option

Functions

L461_TL4_Latch

Passage L361 and L371

  • Door self-latches when closed
  • Both levers always unlocked
L462_TL4_Latch

Privacy L362 and L372

  • Door self-latches when closed
  • Door locks when privacy pin is pushed from inside
  • Unlock latch by turning inside lever or by emergency release from hole on outside of rose cover
L465_TL4_Latch

Half Passage L365 and L375

  • Outside lever always unlocked; inside, dummy rose only
  • Used on pantry or closet if there is no room for an inside lever
  • No egress. Do not select this option for spaces in which person could get trapped inside room
TL3-Parts

Parts List

  1. Outside Rose
  2. Outside Lever
  3. Sub-rose
  4. Stabilizing Bracket
  5. Spindle
  6. Interior Bracket
  7. Sub-rose
  8. Inside Lever
  9. Inside Rose
  10. Thru-Bolts
  11. Set Screw for Lever
  12. TL3 Tubular Latch
  13. Tubular Latch Faceplate
  14. Wood Screws for Faceplate & Strike
  15. Tubular Latch Strike
  16. Tubular Latch Dust Box

Rose & Escutcheon Options

INOX Designer Levers and TL3 latches can be paired with gorgeous roses and plates to coordinate design across your entire property.

RA243 32 C

RA Rose

2-1/2" (63mm) diameter

Combine with INOX RD or CD Deadbolt for locking functions

SE243 32 C

SE Rose

2-3/8" (60mm) square

Combine with INOX SD or LD Deadbolt for locking functions

SH243-Plate-32-A

SH Plate

4-1/2" x 2-3/8"

Combine with any INOX Deadbolt for locking functions

LA243-Plate-32-A

LA Plate

10-1/2" x 2-1/2"
(267mm x 63mm)
SF243-Plate-32-A

SF Plate

10-1/2" x 2-1/2"
(267mm x 63mm)
GT243 32 C

GT Small Rose

Requires special door prep
2-1/16" (53mm) diameter

Combine with INOX GD Deadbolt for locking functions

GS243 32 C

GS Small Rose

Requires special door prep
2-1/16" (53mm) square

Combine with INOX HD Deadbolt for locking functions

Lever Options

All INOX designer levers are standard options for interior lock sets.

Finishes

Standard

32 swatch lever 221
32 Bright Stainless Steel
32D swatch lever 221
32D Satin Stainless Steel
10B swatch lever 221
10B Oil Rubbed Bronze
19G swatch lever 221
19G Graphite Black
PVD4 swatch lever 221
PVD4 Satin Brass

CeraMax

C19G swatch lever 221
C19G Graphite Black
C19 swatch lever 221
C19 CeraMax Flat Black
CDB swatch lever 221
CDB Dark Bronze
CGY swatch lever 221
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.

Strike Options

TL3 latches are only available with the LSR-D14. Full-lip Strike, T-Strike and ASA Strike can be ordered separately.

  • Full Lip Rounded Corner 1-3/4" x 2-1/4"
  • Full Lip 1-3/4"  x  2-1/4"
  • T Strike 1-1/8"  x  2-3/4"
  • ASA 1-1/4" x 4-7/8"

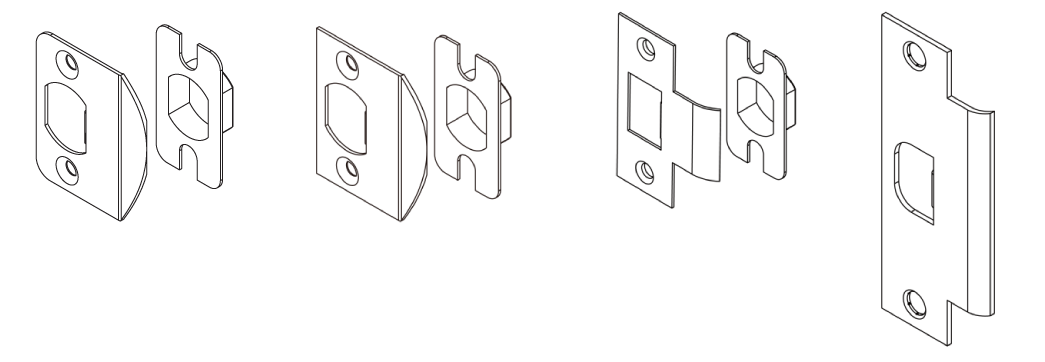

Tubular_strikes-with-rounded-strike-2
