Automatic Flushbolt for Metal Doors

Forged construction with spring-loaded lever to project or retract bolt


  • Flushbolt is projected into frame header or floor when door is closed; automatically retracts when active door is opened
  • Steel body with Stainless Steel components
  • Fully automatic non-handed operation
  • Spring override in case of misalignment

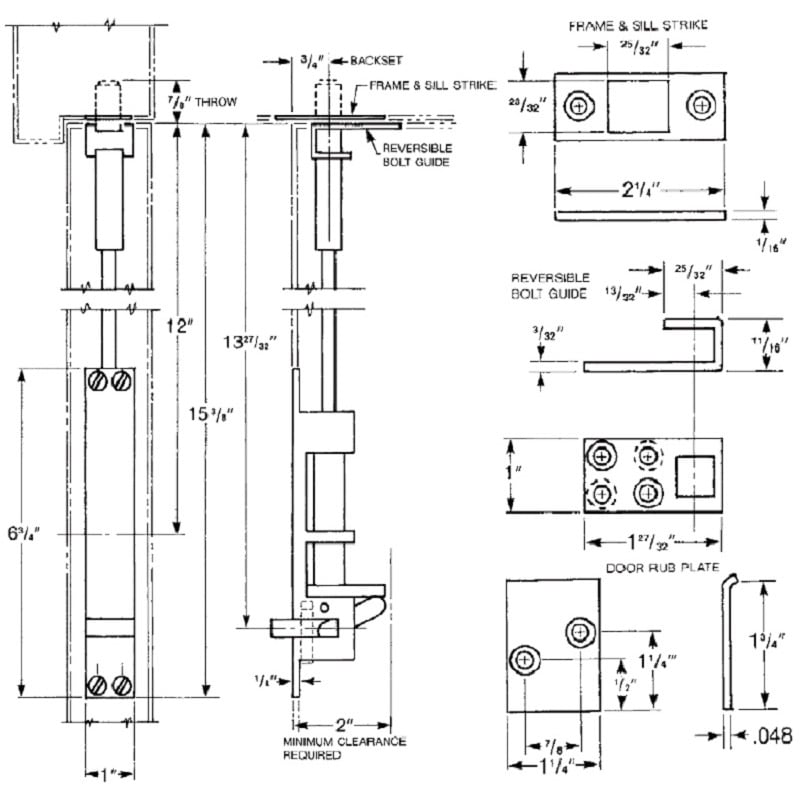

  • 3/4" throw with 1" vertical adjustment capability
  • 12" rod fits standard ANSI preparation
  • Spring-loaded lever projects or retracts bolt
  • Listed up to 3 hours on hollow metal and steel-covered composite doors up to 8 feet
  • Limited 3 year warranty


Data Sheet
Three Part Specifications (coming soon)



Material: Steel and Stainless Steel
Projection: Bolts project 3/4" from top or bottom edge of door with 1"  adjustment
Handing: Non-handed
Spring-loaded Lever to project or retract bolts


ANSI A156.3: Type 25
ANSI A117.1 and ADA for barrier-free accessibility
C-UBC: California Amended Uniform Builders Code
NFPA80: National Fire Protection Association
NFPA101: National Fire Protection - Life Safety

UL codes



26D Satin Chrome
26D Satin Chrome

Custom finishes are available with MOQ and extended lead times.
