GD/HD Deadbolts

Stainless Steel residential or light-duty commercial deadbolts

Features

  • Beautiful, clean design and engineering that meets tough security needs
  • Fully concealed fixing
  • Optional double cylinder (keyed on both sides) and communicating (thumbturn on inside only) functions
  • Professional keying services available
GD-Deadbolt-32D-glamour

Specifications

Special Prep: Requires special door preparation
Door Thickness: 1-3/4" (44mm) standard
Thin and Thick Door Kits available
Backset: 2-3/8" (60mm) standard
2-3/4" (70mm) available
Material: Stainless Steel
Cylinder & Keys: Schlage C Keyway
Cylinder 5 pin with 2 keys
Keying services available
Deadbolt: 1" throw with hardened roller pin
Fully concealed fixing: M5 thru-bolts
UL fire-rated deadbolt available

GD110

GD_exterior
GD_interior

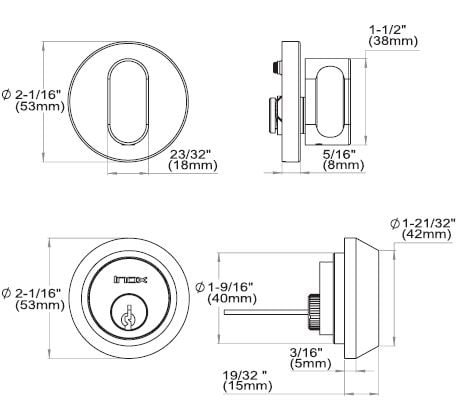

LD-GD

HD310

HD_exterior
HD_interior

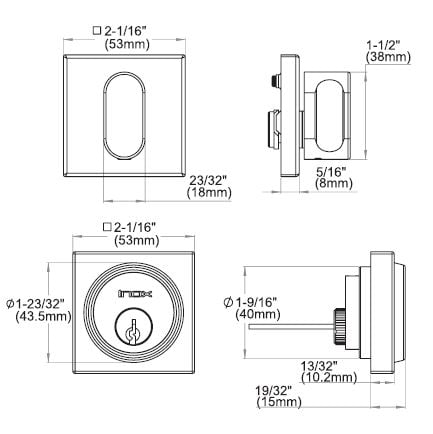

LD-HD

Functions

LD-Deadbolt_110_310

Entry (Single Cylinder)

  • GD110/HD310
  • Deadbolt locked or unlocked by key outside or thumbturn inside
  • When deadbolt unlocked, both levers operate latch in passage function
LD-Deadbolt_120_320

Entry (Double Cylinder)

  • GD120/HD320
  • Deadbolt is locked or unlocked by key inside or outside
  • When deadbolt is unlocked, both levers operate latch in passage function
LD-Deadbolt_192_3292

Communicating

  • GD192/HD392
  • Deadbolt locked or unlocked by thumbturn inside
  • No entrance from outside when deadbolt is locked

Finishes

Standard Finishes

32_squareA
32 Bright Stainless Steel
32D_squareA
32D Satin Stainless Steel
10B_squareA
10B Oil Rubbed Bronze

CeraMax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 CeraMax Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Gray

Not all finishes are standard with each lever. Custom finishes including CeraMax are available with MOQ and extended lead times.
