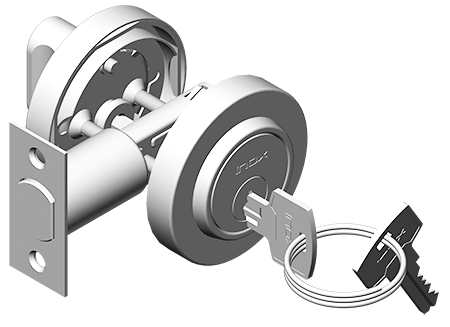

CD_Deadbolt_3Da

CD/LD Deadbolts

Stainless Steel residential or light-duty commercial deadbolts

Features

  • Beautiful, clean design and engineering that meets tough security needs
  • Fully concealed fixing
  • Optional double cylinder (keyed on both sides) and communicating (thumbturn on inside only) functions
  • Professional keying services available

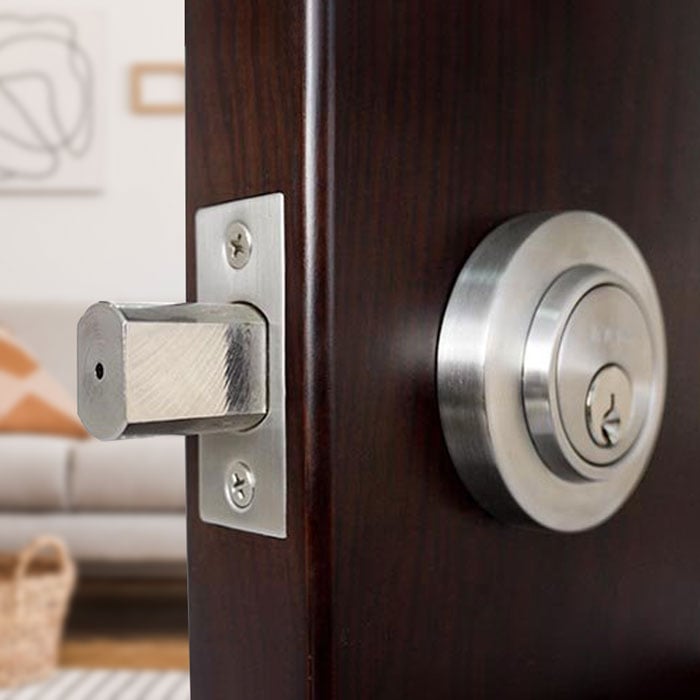

CD Deadbolt 32D glamour

Specifications

Door Thickness: 1-3/4" (44mm) standard
Thin and Thick Door Kits available
Backset: 2-3/8" (60mm) standard
2-3/4" (70mm) available
Material: Stainless Steel
Cylinder & Keys: Schlage C Keyway
Cylinder 5 pin with 2 keys
Keying services available
Deadbolt: 1" throw with hardened roller pin
Fully concealed fixing: M5 thru-bolts
UL fire-rated deadbolt available

CD110

CD_exterior
CD_interior

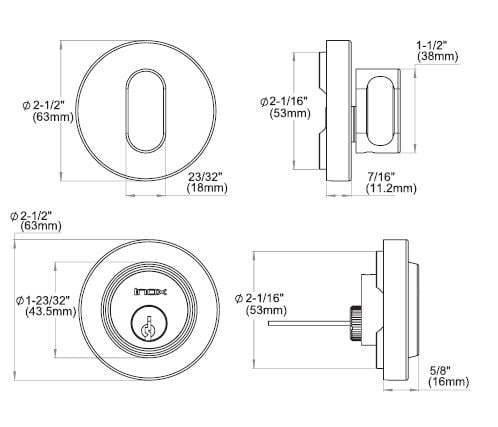

LD-CD_Deadbolt

LD310

LD_exterior
LD_interior

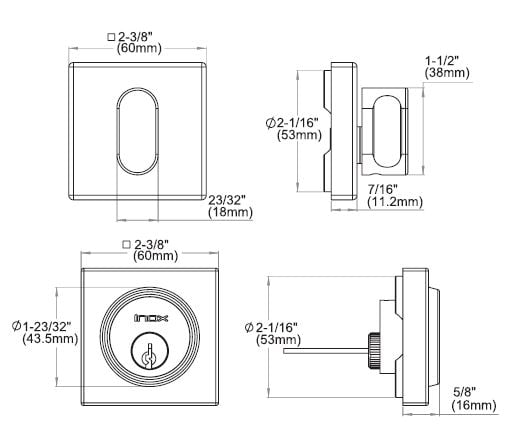

LD-LD_Deadbolt

Functions

LD-Deadbolt_110_310

Entry (Single Cylinder)

  • CD110/LD310
  • Deadbolt locked or unlocked by key outside or thumbturn inside
  • When deadbolt unlocked, both levers operate latch in passage function
LD-Deadbolt_120_320

Entry (Double Cylinder)

  • CD120/LD320
  • Deadbolt is locked or unlocked by key inside or outside
  • When deadbolt is unlocked, both levers operate latch in passage function
LD-Deadbolt_192_3292

Communicating

  • CD192/LD392
  • Deadbolt locked or unlocked by thumbturn inside
  • No entrance from outside when deadbolt is locked

Finishes

Standard Finishes

CD-32-swatch
32 Bright Stainless Steel
CD-32D-swatch
32D Satin Stainless Steel
CD-10B-swatch
10B Oil Rubbed Bronze
CD-19G-swatch
19G Graphite Black
CD-PVD4-swatch
PVD4 Satin Brass

Ceramax Finishes

C19G_squareA
C19G Graphite Black
C19_squareA
C19 CeraMax Flat Black
CDB_squareA
CDB Dark Bronze
CGY_squareA
CGY Stormy Grey

Not all finishes are standard. Custom finishes including CeraMax are available with MOQ and extended lead times.
