ED70 LBR 32D A


Less Bottom Rod Exit Device

ANSI/BHMA 156.5 Grade 1 Heavy Duty


  • INOX ED70-LBR and ED70F-LBR less bottom rod exit devices use a spring-loaded auxiliary latch bolt in the lower door edge, providing free access for wheelchairs and stretchers
  • Suitable for all double doors and UL listed for Panic Exit Hardware. Meets ANSI A156.3 Grade 1 standards and will install on a standard 161 cut-out
  • Non-handed with a universal design that allows them to easily retrofit the Von Duprin 98/99 series and Sargent 88 series installations when paired with INOX exit device trim
  • Fits all doors from 36" - 48" in width, 84" - 96" in height, and 1-3/4" in thickness. 36" x 96" and 48" x 84" are available as special order items Cylinder Dogging is available on a non-rated device

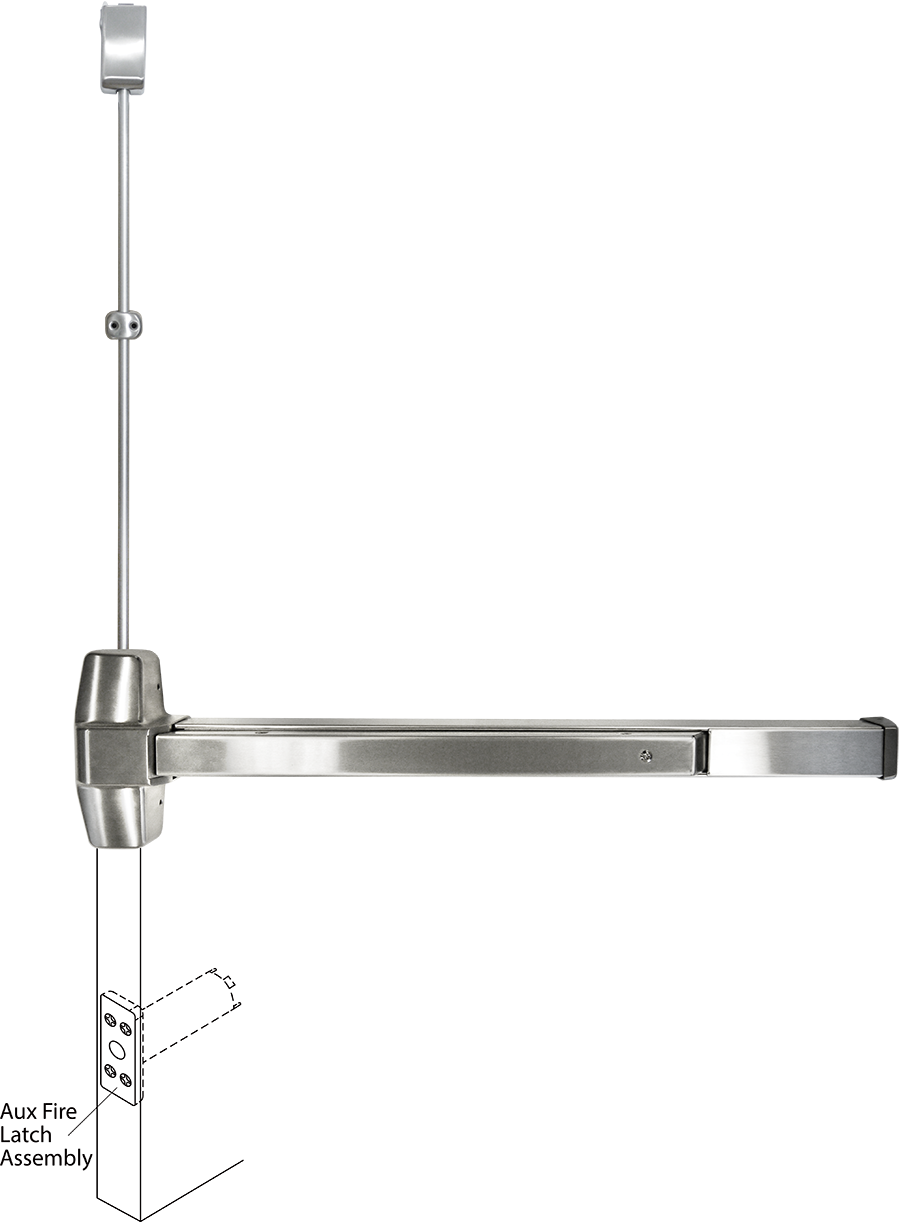

ED70 LBR with Aux Fire Latch drawing


Device Functions: Exit device only, trim available separately
Device Lengths:
3': 2'2" to 3' (660mm to 914mm) door size
4': 2'9" to 4' (838mm to 1219mm) door size

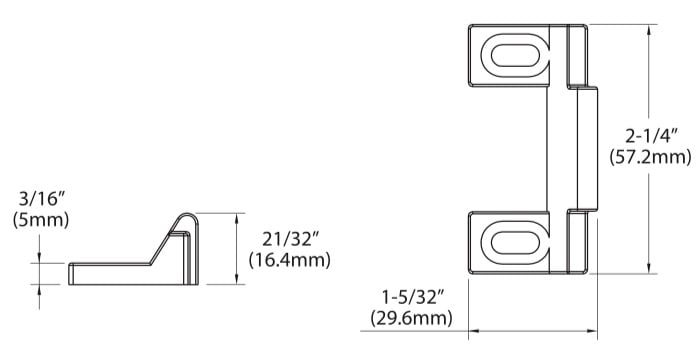

Top Dull Black Strike (EDLSR-227)
Bottom Dull Black Strike (EDLSR-221)
Dogging Feature: Hex Key Dogging available on Non-Fire Rated devices only
Dogging Options: Cylinder Dogging available on complete devices only, not as separate kits
Electric Options: Alarm Kit 36" and 48" available
Miscellaneous Options: GBK Glass Bead Kit
Fasteners & Sex Bolts:
Furnished with wood & machine screws
Thru-bolts standard on Fire-Rated devices
Latch Bolt: Stainless Steel 3/4" (19mm) throw
Device Centerline from Finished Floor: 41" (1041mm)
Center Case Dimensions: 7-7/8" x 2-9/16" x 1-7/8" (200mm x 65mm x 48mm)
Mechanism Case Dimensions:1-9/16" w x 2" (41mm x 51mm)
Top & Bottom Latch Case
Standard Panic: 3-15/16" x 2-1/8" x 1-3/8" (100mm x 54mm x 35mm)
Fire Rated: 3-15/16" x 2-11/16" x 2-1/16" (100mm x 68mm x 52mm)
Vertical Rods
36" Door: Top Rod - 43-1/4" (1099mm)
48" Door: Top Rod - 56-1/16" (1424mm)
Pushbar Neutral 2-1/2" (64mm)
Pushbar Depressed 1-3/4" (44mm)


  • ANSI/BHMA A156.3 Grade 1Exit Devices
  • ANSI/BHMA A156.29 Exit Lock and Alarm
  • UL Listed for ANSI/UL10B and UL10C, CAN/ULC S104 up to 3 Hours
  • UBC Standard 7-2 (1997) NFPA 252
  • ANSI/UL 305 and CAN/ULC-S132
  • NFPA 80 National Fire Protection - Fire Door Assembly
  • NFPA101 National Fire Protection - Life Safety
  • ANSI/BHMA A156.18 Finishes
  • ANSI A117.1 ADA Accessibility
  • Electrification - ANSI/UL634, ANSI/UL294, ANSI/UL10C

Optional Trim for RIM, SVR, LBR

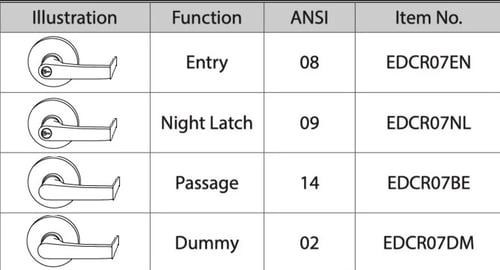

Cylindrical Trim

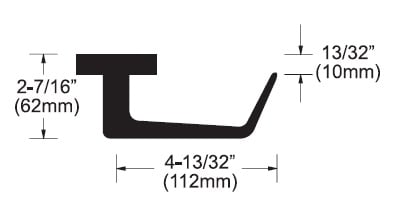

07 Lever

Projection: 2-7/16”
Cylinder Type: In-lever cylinder for Entry and Night Latch/Storeroom functions



Escutcheon Trim

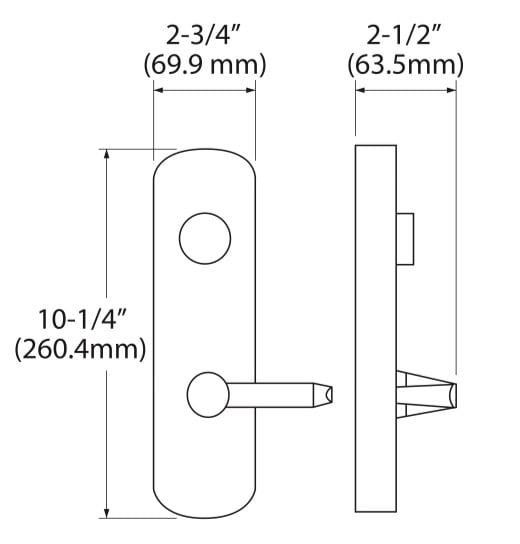

ES drawing
07 Lever

Projection: 2-1/2”
Cylinder Type: In-escutcheon cylinder for Entry and Night Latch/Storeroom functions

ES chart

Optional Trim for RIM, SVR, LBR

Thumbpiece and Plate Trim

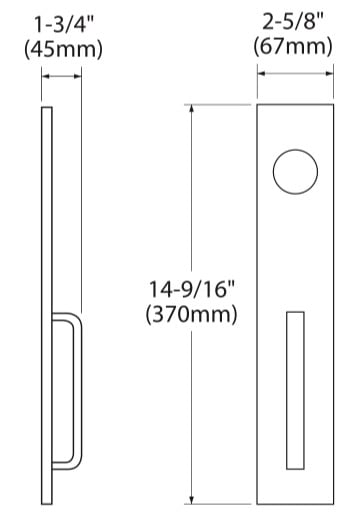

TP drawing

Plate Size: 14-9/16" x 2-5/8"

Pull Projection: 1-3/4"

Cylinder: 1-1/4" Mortise Cylinders included for Thumb-piece Plate (TP) Entry and Storeroom function.

Rim Cylinder for Pull Plate (PP) Night Latch function.

Schlage C keyway standard. Specify "IC" for IC Core Cylinders. Other keyways available by special order.

TP chart

Wing Pull

Wing Pull


Strike for ED93-LBR/ED93F-LBR Less Bottom Rod Exit Device



Strike for ED70-LBR/ED70F-SVR Less  Bottom Rod Exit Device





32D Satin Stainless Steel

Custom finishes may be available with MOQ and extended lead times.
