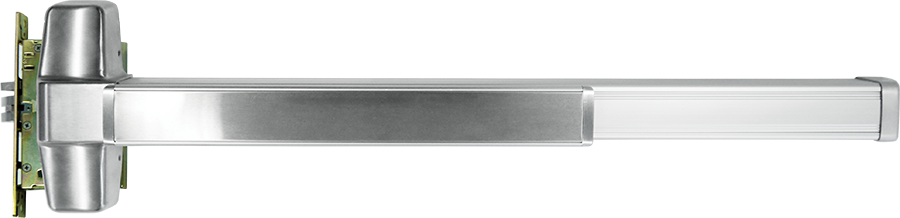

ED93 / ED93F-MED

Mortise Exit Devices

ANSI/BHMA 156.5 Grade 1 Heavy Duty


  • INOX® ED93F-MED mortise exit devices are suited for most single door applications. They can also be used on double doors when using open backed strikes
  • UL listed for Fire Exit Hardware, meets ANSI A156.3 Grade 1 standards and installs on a standard 86 pocket prep
  • Non-handed with a universal design that allows them to easily retrofit the Von Duprin 99 series installation when paired with INOX exit device trim
  • Fits all doors up to 36” in width and 1-3/4” in thickness. 48” width devices can be ordered as an option


Device Functions:
MED for Exit Only (No Entrance, No knob/lever, Exit only)
MED08 for Entry (Entrance by knob/lever. Key locks or unlocks knob or lever)
MED09 for Storeroom (Entrance by knob/lever only when released by key. Key removable only when locked)
MED14 for Passage (Entrance by knob/lever when latch is released. Always active, no cylinder)
Device Lengths:
3': 2'2" to 3' (660mm to 914mm) door size
4': 2'9" to 4' (838mm to 1219mm) door size
Strikes: Standard ANSI Strike
Dogging Options: Dogging not available on this device
Electric Options: Alarm Kit 36" and 48" available
Miscellaneous Options: GBK Glass Bead Kit
Fasteners & Sex Bolts:
Furnished with wood & machine screws
Mortise Lock: Grade 1 for 1-3/4" thick doors, reversible, 2-3/4" backset
Device Centerline from Finished Floor: 41" (1041mm)
Center Case Dimensions: 8-3/32" x 2-13/16" x 2-15/32" (206mm x 71mm x 63mm)
Mechanism Case Dimensions: 2-3/16" w x 1-15/16" (55.4mm x 49.1mm)
Pushbar Neutral 3-3/4" (95.3mm)
Pushbar Depressed 2-15/16" (74.5mm)


  • ANSI/BHMA A156.3 Grade 1Exit Devices
  • ANSI/BHMA A156.29 Exit Lock and Alarm
  • UL Listed for ANSI/UL10B and UL10C, CAN/ULC S104 up to 3 Hours
  • UBC Standard 7-2 (1997) NFPA 252
  • ANSI/UL 305 and CAN/ULC-S132
  • NFPA 80 National Fire Protection - Fire Door Assembly
  • NFPA101 National Fire Protection - Life Safety
  • ANSI/BHMA A156.18 Finishes
  • ANSI A117.1 ADA Accessibility
  • Electrification - ANSI/UL634, ANSI/UL294, ANSI/UL10C

Trim for Mortise Exit Device (MED)

Escutcheon Trim

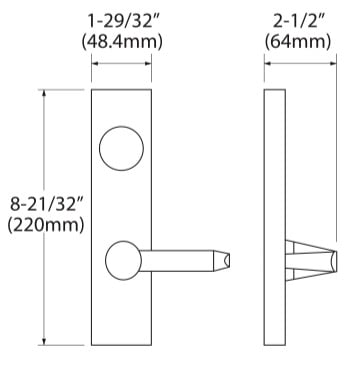

med drawing

Escutcheon Size: 8-21/32" x 1-29/32"
Lever Projection: 2-1/2"
Cylinder: 1-1/4" Mortise Cylinders included for Entry and Storeroom function. Schlage C keyway standard. Other keyway available by special order.

MED chart



32D Satin Stainless Steel

Custom finishes may be available with MOQ and extended lead times.
