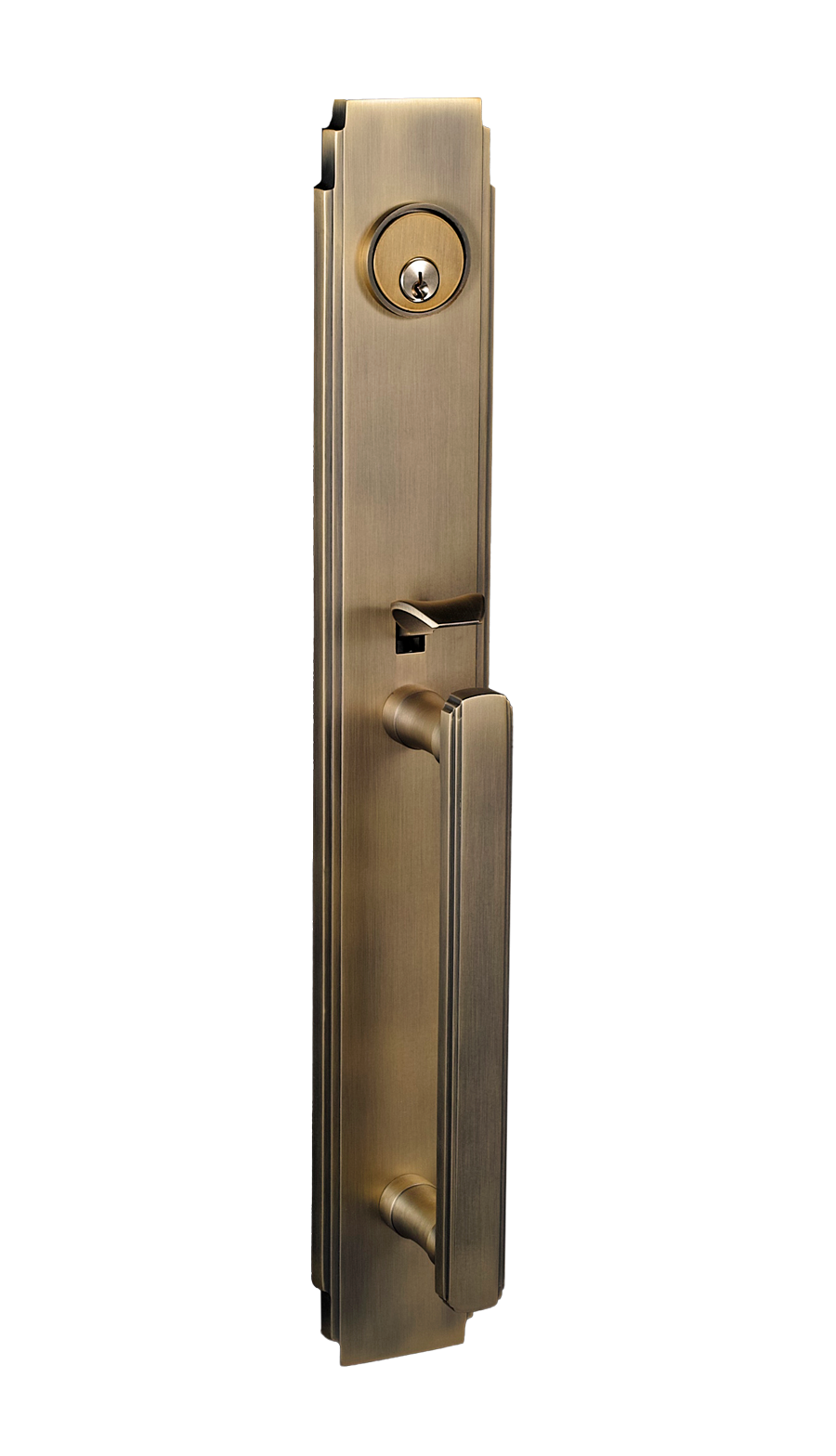

Art Deco Entrance Handlesets

Mortise & Tubular Entry Sets

Features

  • Art Deco–inspired design with bold geometry and clean, architectural lines
  • Premium latch set construction combining stainless steel or forged brass trim with a commercial-grade tubular latch
  • Spring-assisted interlocking chassis engineered for smooth operation and long-term performance
  • Designed for high-end residential, mixed-use, and hospitality applications
  • Stainless steel latch stabilizer bracket provides enhanced durability and resistance to heavy torque during 28° latch retraction

Downloads

Mortise Entrance Handleset Data Sheet (coming soon)
Tubular Entrance Handleset Data Sheet

Art-Deco-Entry-Sunlight-room-3b

Specifications

Latch Faceplate: 1” x 2-1/4” square corner
Door Thickness: 1-3/8”(35mm) to 1-3/4”(44mm)
Thick Door Kit available
Backset: 2-3/8” (60mm), 2-3/4” (70mm)
Handing: Field reversible for Passage or Privacy functions; specify for Half Passage or Passage with Privacy Bolt
Cylinder & Keys: 6 pin Schlage C keyway with 2 keys
Lever Spindle: 8x8mm square
Lever Action: 28 degree

Functions

Entry_Single_Cylinder

Entrance

  • Keyed
  • Inside thumbturn locks and unlocks outside lever
  • Outside key unlocks outside lever
  • Inside lever is always unlocked
Dummy_Pair

Entry Dummy

  • Non-keyed
  • No latch or locking mechanism
  • Fixed lever
  • For decorative or pull use only

Art Deco Handleset Options

Tubular

Art-Deco-Hallway-2

Finishes

Standard

19G swatch lever 221
19G Graphite Black
aged-brass-swatch
38 Aged Brass
