PHIX45714_surfacepulls

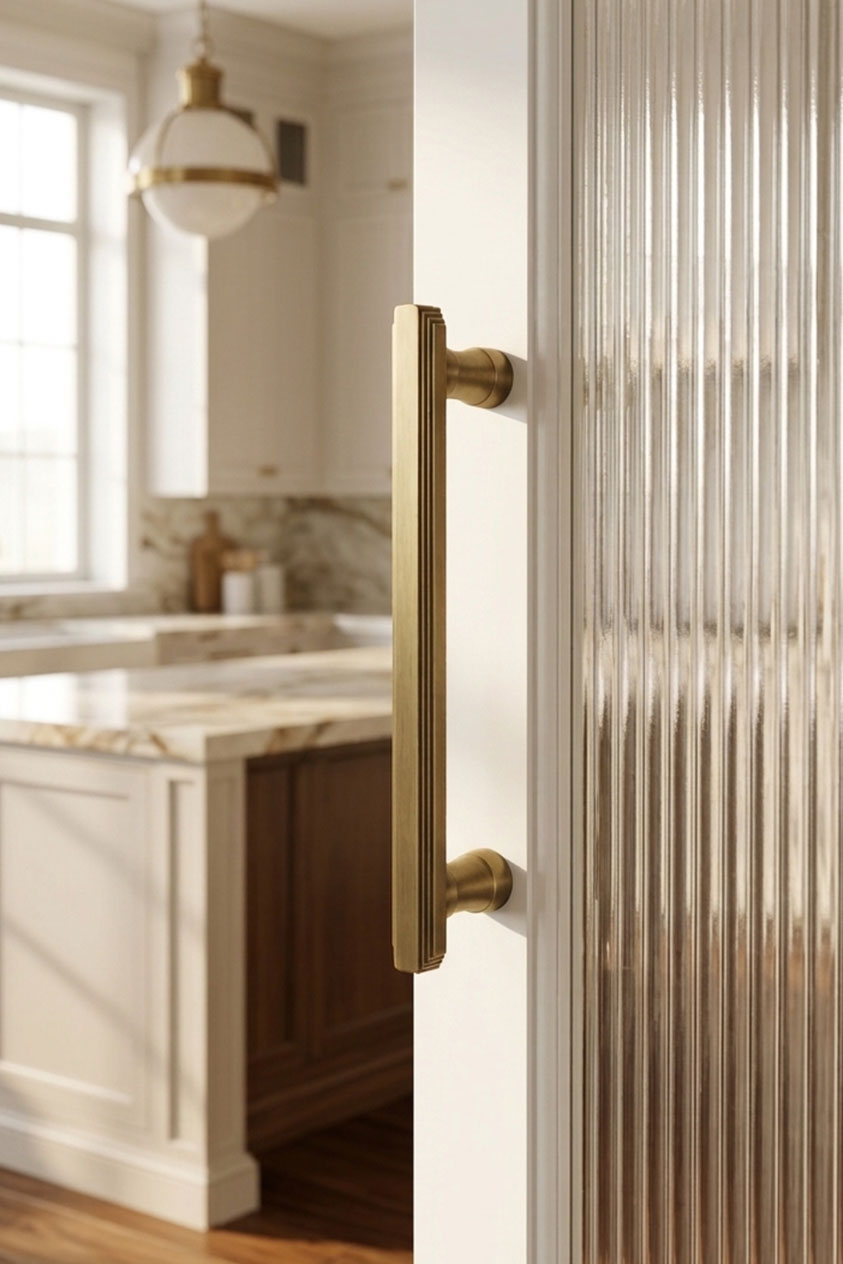

Art Deco Surface Pulls

For interior and exterior doors

Art-Deco-Door-Pull

Art Deco Surface Pulls

Art Deco Surface Pulls Data Sheet (coming soon)
PHIX Installation Instructions (coming soon)

Features



Specifications

Dimensions: 8-3/4" x 2-3/4" (222mm x 65mm)
Tube Diameter: 3/4" (19mm)
Center to Center: 8" (203mm)
Fixing Options: Bolt-Thru (BT), Back-to-Back (BTB) or On Roses (OR)
Material: Stainless Steel
Standard Finishes: 32D, 32, 19G, CGY, CDB, C19G, C19

PHIX31108_surfacepull
Other Sizes
PHIX31106_table
PHIX30108 ADA

PHIX30108

Tubular Profile ADA Pull

Perfectly balanced for optimal use

Specifications

Dimensions: 8-3/4" x 2-9/16" (222mm x 65mm)
Diameter: 3-4" (19mm)
Center to Center: 8" (203mm)
Fixing Options: Bolt-Thru (BT) and Back-to-Back (BTB)
Material: Stainless Steel
Standard Finishes: 32D, 32, 19G, CGY, CDB, C19G, C19

PD5000 hospitality glamour

PHIX330.512.8

Ladder Profile

Optimized for all ADA application styles

Specifications

Dimensions: 8" x 2-9/16" (203mm x 65mm)
Diameter: 7/8" (22mm)
Center to Center: 5-1/2" (440mm)
Post Angle: 45 degrees
Fixing Options: Bolt-Thru (BT) and Back-to-Back (BTB)
Material: Stainless Steel
Standard Finishes: 32D, 32, 19G, PVD4, CGY, CDB, C19G, C19

PHIX330.512.8_surfacepull
Other Sizes
PHIX330_Revised
PHIX Glamour 1

PHIX45714

Square Profile ADA Pull

These clean squared lines are the foundation of modern design styles

Specifications

Dimensions: 7-3/4" x 1-3/4" (197mm x 45mm)
Diameter: 7/8" (22mm)
Center to Center: 7-1/4" (184.5mm)
Fixing Options: Bolt-Thru (BT) and Back-to-Back (BTB)
Material: Stainless Steel
Standard Finishes: 32D, 32, 19G, CGY, CDB, C19G, C19

PHIX45714_surfacepulls

Size

Graph-1
PHIX41714_surfacepull

PHIX41714

Aurora Decorative Profile

Combines square and rounded design elements to match the beautiful INOX 221 Aurora lever. Perfect for interior styles that mix color, pattern, and texture

Specifications

Dimensions: 8-1/4" x 2-3/8" (209mm x 60mm)
Diameter: 7/8" (22mm)
Center to Center: 7-1/4" (184.5mm)
Fixing Options: Bolt-Thru (BT) and Back-to-Back (BTB)
Material: Stainless Steel
Standard Finishes: 32D, 32, 19G, SP (Split 32D/32), CGY, CDB, C19G, C19

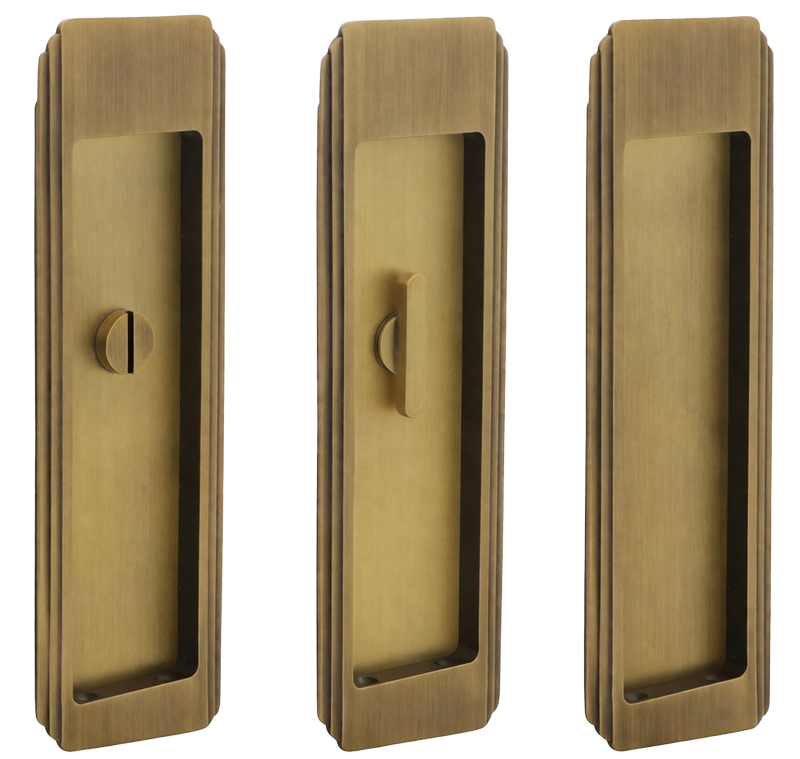

ART DECO Flush PULLS

Features clean lines and subtle stepped geometry, reflecting the balance of form and proportion found in the Art Deco movement. Available in Aged Brass (38) and Graphite Black (19G).
Art-Deco-Flush-Pulls

Finishes

Standard Finishes

19G_squareA
19G Graphite Black
PVD4_squareA
38 Aged Brass
