Exit Device Trim

Features

• INOX offers a variety of optional trim to augment your exit device installations
• RIM, SVR, and LBR trim is available in both cylindrical and thumbpiece plate options
• INOX provides trim across an array of functions, including Entry, Storeroom, and Night Latch
• Schlage C keyway standard; IC core cylinders and other keyways available

Downloads

Data Sheet
Installation Instructions
Templates

Cylindrical

ED93/ED70 RIM, SVR, LBR

Lever & Plate

ED93/ED70

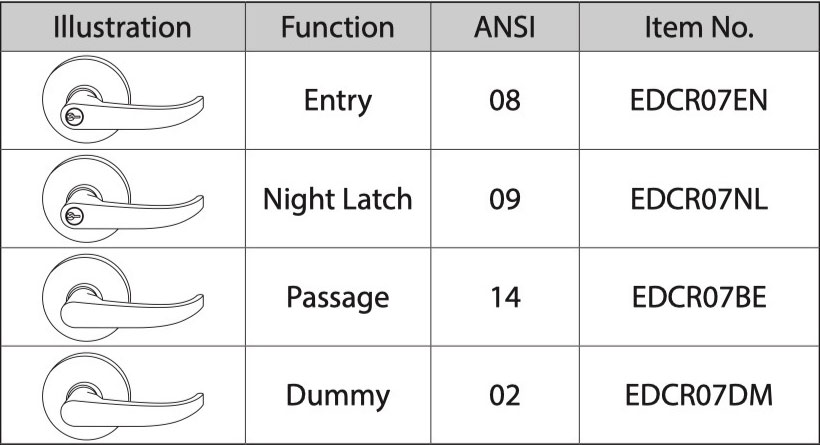

Lever: 07
Projection: 2-1/2”
Cylinder Type: In-escutcheon for Entry and Storeroom functions
Mortise Cylinder included for Entry, Night Latch functions
Finishes: 26D Satin Chrome, 19G Graphite Black, DU Dark Bronze Painted

Concealed Vertical Rod

ED93

Escutcheon Size: 8-7/16" x 2-5/16"
Lever Projection: 2-3/8"
Cylinder: 1-1/4" Mortise Cylinders included for Entry and Storeroom function. Schlage C keyway standard. Specify "IC" for IC Core Cylinders. Other keyway available by special order
Finish: 26D Satin Chrome

Thumbpiece & Plate

ED93/ED70 RIM, SVR, LBR

Plate Size: 14-9/16" (370mm) x 2-5/8" (67mm)
Pull Projection: 1-3/4" (45mm)
Keyway: Schlage C keyway standard. Specify "IC" for IC Core Cylinders. Other keyways available by special order
Finish: 32D Satin Stainless Steel

Mortise Exit Device (MED)

PD93

Escutcheon Size: 8-21/32" (220mm) x 1-29/32" (48.4mm)
Lever Projection: 2-1/2" (64mm)
Cylinder: 1-1/4" Mortise Cylinders included for Entry and Storeroom function. Schlage C keyway standard. Other keyway available by special order
Finish: 26D Satin Chrome

XSF Designer Trim

ED93
