Specifications
Door Thickness: 1-1/2” (38mm) ~ 2” (51mm) doors standard
Door Prep: Standard 161 Prep. w/optional thru-bolts Crossbore 2-1/8” (54mm), Edgebore 1” (25mm), Latch face 1-1/8” (28.6mm) x 2-1/4” (57mm)
Backset: 2-3/4” (70mm) standard. 2-3/8” (60mm) and 5” (127mm) optional
Cylinder: Solid brass, 6-pin anti-pick. Two (2) keys per lock, Schlage C keyway, keyed differently. Other keyways and keying services available
Handing: Non-handed
Trim: Solid zinc diecast levers. 55° lever rotation for full latch retraction
Clutch Function (CL): Outside lever freewheeling while locked to prevent vandalism

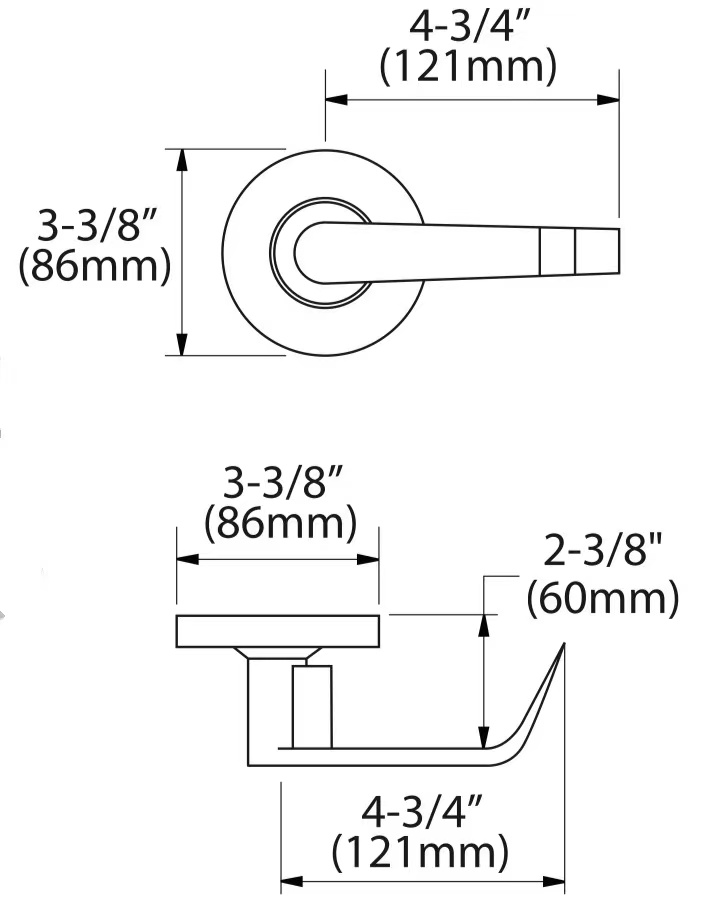

Rose:3-3/8” (86mm) diameter brass rose with concealed screws. Threaded interior and exterior roses. Removable thru bolt
Latchbolt: 1/2” (12.7mm) throw, stainless steel 3 hour fire-rated latchbolt. Reversible for flat and beveled doors
Faceplate: 1-1/8” (28.6mm) x 2-1/4” (57mm) Square corner standard with stainless steel or brass faceplate
Strike: ANSI curved lip strike 4-7/8"(124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center standard. Full lip strike or T strike available
Compliance
- ANSI A156.2 Grade 2
- UL 10C and UBC 7.2 3 Hour Fire Rated for positive pressure.
- ANSI A117.1 ADA Barrier-free Accessibility
- C-UBC California Uniform Builders Code-2001
- NFPA-80 National Fire Protection-1999
- NFPA-101 National Fire Protection-Life Safety-2000
