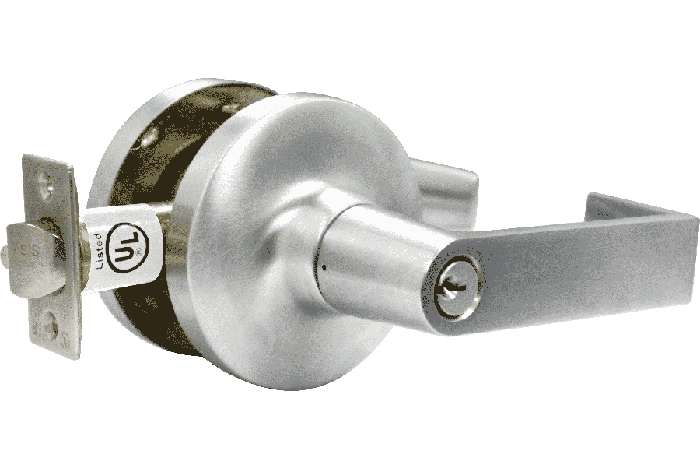

CL 26D

CL Series

Heavy Duty Cylindrical Locks

ANSI/BHMA Grade 1

Features

  • Cylindrical body designed and manufactured for Grade 1 strength and durability
  • Coil compression spring on each side prevents lever sag, maintains reliability, and reduces maintenance
  • High precision pick-resistant 6-pin solid brass cylinder, interchangeable with cylinders from other manufacturers
  • Concealed screw mounting
  • Reversible UL 3 hour fire rated throw deadlatch for flat and beveled door
  • Stainless steel latchbolt

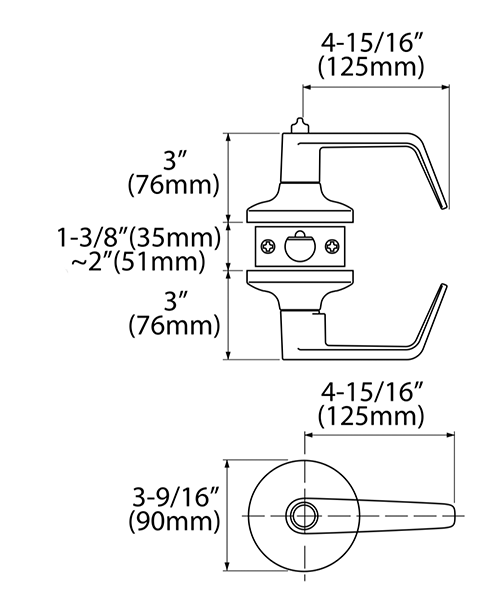

CL-drawing

Specifications

Door Thickness: Standard 1-3/8” (35mm) ~2” (51mm)
Door Prep: Crossbore 2-1/8” (54mm), Edgebore 1” (25mm), Latch face 2-1/4” (57mm) x 1-1/8” (28.6mm)
Backset: 2-3/4” (70mm) standard. 2-3/8” (60mm) and 5” (127mm) optional
Cylinder: Solid brass, 6-pin anti-pick. Two (2) keys per lock, Schlage C keyway, keyed differently. Other keyways and keying services available. IC Cores available; order Core separately.
Handing: Non-handed
Trim: Solid zinc diecast levers. 55° lever rotation for full latch retraction
Clutch Function (CL): Outside lever freewheeling while locked to prevent vandalism
Rose: 3-9/16” (90mm) diameter brass rose with concealed screws. Threaded interior and exterior roses. Removable thru bolt
Latchbolt: 1/2” (12.7mm) throw, stainless steel 3-hour fire-rated latchbolt. Reversible for flat and beveled doors
Faceplate: 2-1/4” (57mm) x 1-1/8” (28.6mm). Square corner standard with stainless steel or brass faceplate
Strike: ANSI curved lip strike 4-7/8"(124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center standard. Full lip strike or T strike available

Compliance

  • ANSI A156.2 Grade 1, UL 10C and UBC 7.2 for positive pressure
  • ANSI A117.1 ADA Barrier-free Accessibility
  • C-UBC California Uniform Builders Code-2001
  • NFPA-80 National Fire Protection-1999
  • NFPA-101National Fire Protection-Life Safety-2000

Functions

Non-keyed Locks

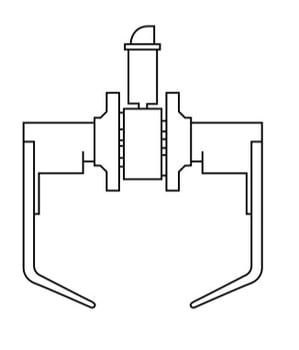

CL-10

10 (ANSI: F75)

Passage Latch

  • Inside and outside levers are always unlocked
CL-25

25 (ANSI: F111) Exit/Communicating Lock

  • Inside lever always unlocked
  • Blank plate outside
  • Inside lever always free for emergency exit

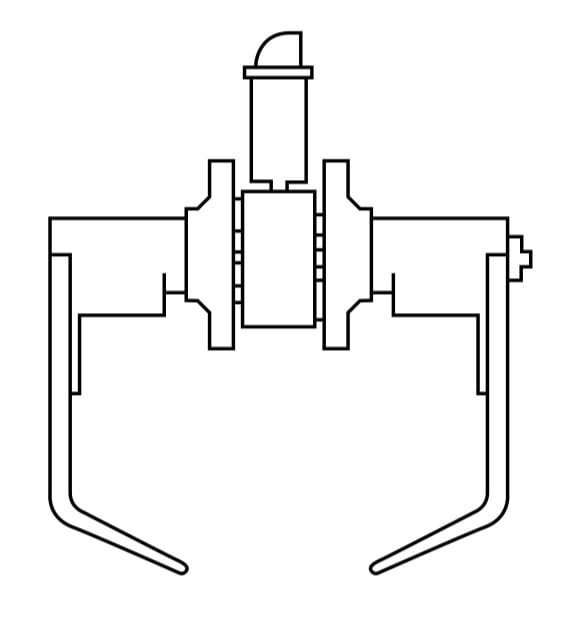

CL-40

40 (ANSI: F76)

Bath/Bedroom Privacy Lock

  • Outside lever locked by push button inside
  • Outside lever unlocked by emergency release outside or rotating inside lever
  • If privacy pin is engaged while door is open, closing door disengages the pin and unlocks outer lever
  • Inside lever is always free to provide emergency exit
CL-17

17

Single Dummy Trim

  • Single dummy trim for one side of door only

Keyed Locks

CL-50

50 (ANSI: F82)

Entrance/Office Lock

  • Push button locks outside lever until unlocked by key, releasing the button, or turning inside lever
  • Key outside releases push button, unlocking outside lever
  • Inside lever always free for emergency exit
CL-75

75 (ANSI: F110)

Intruder Classroom Lock

  • Outside lever locked or unlocked by key from either side
  • When unlocked, lockset works as passage set
  • When lock is engaged, key required from either outside or inside to unlock lockset
  • The inside lever always unlocked for emergency exit
CL-53

53 (ANSI: F109)

Entrance Lock

  • Push and turn inside button to lock outside lever
  • Until button is reset, key required to unlock outside lever
  • Pushing button without turning it locks outside lever until key is used or inside lever is turned
  • Inside lever always free for emergency exit
CL-80

80 (ANSI: F86)

Storeroom Lock

  • Outside lever is unlocked only while key is turned
  • Inside lever is always free for emergency exit
CL-70

70 (ANSI: F84)

Classroom Lock

  • Outside lever locked or unlocked by key
  • Unlocked, lockset works as passage set
  • Locked, key required from outside to unlock lockset
  • Inside lever always unlocked for emergency exit
CL-66

66 (ANSI: F91)

Store Door Lock

  • Key from either inside or outside locks or unlocks both levers
  • When unlocked, latch bolt operates by lever from either side
CL-82

82 (ANSI: F87)

Institution Lock

  • Both levers are always inoperable
  • Entrance by key from either side

Lever Designs

Lever Options

22222
CL-07drawing
07 IN STOCK

Latches and Strike

Dead Latches and Spring Latches
1-1/8" Faceplate

LSL06N

LSL06N

2-3/8" Spring Latch
LSL06K

LSL06K

2-3/8" Dead Latch
LSL07N

LSL07N

2-3/4" Spring Latch
LSL07K

LSL07K

2-3/4" Dead Latch

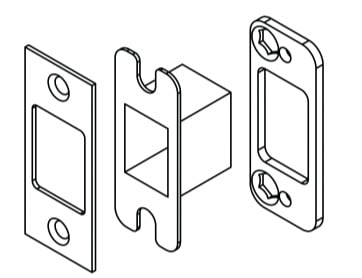

LSR-ASA line drawing

LSR-ASA

ASA Strike
(ANSI Standard)
1-1/4” x 4-7/8”

Finishes

Standard

26D Satin Chrome
26D Satin Chrome



10B_squareA
10B Oil Rubbed Bronze



C19G_squareA
19G Graphite Black







Custom finishes including CeraMax are available with MOQ and extended lead times.
